Product Information

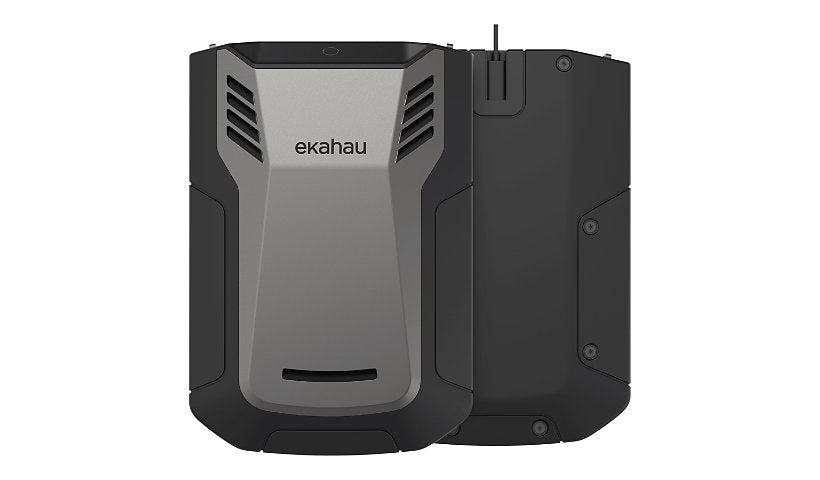

The Ekahau Sidekick 2 (ESK-2) is a lab calibrated Wi-Fi measurement device for professional site surveys and troubleshooting. It pairs four tri-band Wi-Fi radios with a 50 sweeps per second spectrum analyzer covering 2.4, 5 and 6 GHz, nine wideband 3D antennas, a 120 GB SSD and quiet active cooling. It measures signal level, spectral noise and interference so you can see Wi-Fi strength at every point. It connects by USB-C, has an all day lithium ion battery (up to 2 days listed) and ships with a messenger strap, power adapter and USB-C cable. It has a 1 year limited warranty.
Key Features
- 2.4, 5 and 6 GHz Wi-Fi
- Spectrum analyzer, 50/s
- 9 wideband 3D antennas
- 120 GB SSD
- All day battery
- 1 year warranty
Product Information
Tests, Tools and Measurements: Cross-talk interference, IEEE 802.11 a/b/g/n/ac/ax discovery, Signal level meter, Spectral noise, Wireless LAN testing
Media: Radio
Brand: Ekahau
Manufacturer: Ekahau
Product Line: Ekahau Sidekick
Model: 2
Product Type: Network tester
Packaged Quantity: 1
Network and Communication
Features: 50 sweeps/second spectrum analyzer, 9 wideband 3D antennas, Built-in 120 GB SSD, Whisper-quiet active cooling, Wi-Fi IEEE 802.11 a/b/g/n/ac/ax; full tri-band (2.4 GHz, 5 GHz, 6 GHz )
Connectivity
Connectors: 24 pin USB type C
Power
Battery Chemistry: Lithium ion
Output Voltage: 20 V
Battery Run Time (Up To): 2 days
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Dimensions and Weight
Height: 8.9 inch
Width: 6.1 inch
Depth: 1.5 inch
Weight: 2.38 lbs
Included Items
Included Accessories: Messenger strap, Power adapter
Cables: 1 x USB-C to USB-C cable
Warranty
Manufacturer Limited Warranty: 1 year
