Product Information

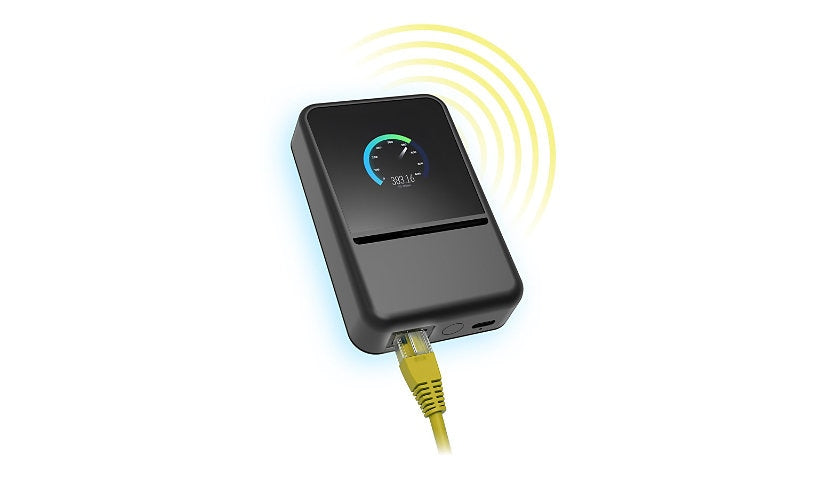

The Ekahau Speedtest Pulse STP-1 is a pocket size network diagnostic tool for ISP field technicians and enterprise IT teams. It has a tri-band Wi-Fi 7 radio (2.4, 5 and 6 GHz), a 1 Gbps Ethernet port with PoE support, Bluetooth 5.4, USB-C and a 2.1 inch hardened glass AMOLED touchscreen. It runs Wi-Fi, Ethernet link and connectivity tests, has a magnetic attachment ring and LED indicators, and comes with a USB-C cable and pouch. It requires Speedtest Pulse software, sold separately.
Key Features
- Wi-Fi 7 tri-band radio
- 1 Gbps Ethernet, PoE
- 2.1 inch AMOLED screen
- Bluetooth 5.4
- Magnetic attachment ring
- Software sold separately
Product Information
Tests, Tools and Measurements: Ethernet link diagnostic, IEEE 802.11 a/b/g/n/ac/ax/be discovery, Network connectivity, Wireless LAN testing
Media: Radio
Brand: Ekahau
Manufacturer: Ekahau
Product Line: Ekahau Speedtest Pulse
Model: STP-1
Product Type: Network tester
Packaged Quantity: 1
Network and Communication
Features: Bluetooth 5.4, LED indicators, Magnetic attachment ring, PoE support, Reset button
Connectivity
Connectors: 24 pin USB type C, RJ-45
Power
Battery Chemistry: Lithium ion
Battery Voltage: 3.7 volt
Battery Run Time (Up To): 2 Hours
Technical Information
Color Support: Color
Display Diagonal Size: 2.1 inch
Display Diagonal Size (metric): 5.3 centimetre
Display Screen: AMOLED
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Dimensions and Weight
Height: 4.1 inch
Width: 2.6 inch
Depth: 1 inch
Weight: 6.35 ounce
Included Items
Included Accessories: Carrying pouch
Cables: 1 x USB-C to USB-C cable
Certifications and Listing
Compliant Standards: FCC Part 15, ISED, RED, RoHS, UKCA
