Product Information

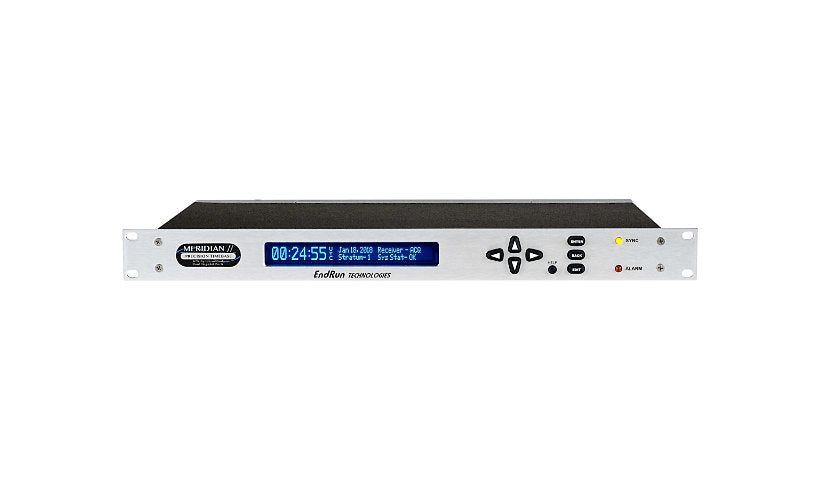

The EndRun Meridian II Precision TimeBase (3043-1001-000) is a modular 1U GPS synchronized time and frequency standard and NTP server. It has 5 expansion slots (3 free), 2 gigabit RJ-45 ports, an RS-232 DB-9 port, 3 BNC timing input/output ports and a TNC antenna port, plus a keypad and status LCD. Management covers HTTPS, SSH, Telnet and SNMP v1/v2c/v3 with MD5 and SHA, and it supports DHCP, IPv6, SNTP and syslog. It has two redundant power supplies and a listed 30 year MTBF. A GPS antenna, 50 ft antenna cable, mounting pipe and clamps are included.
Key Features
- GPS time and frequency
- 5 slots, 3 free
- 3 BNC timing ports
- Dual redundant PSUs
- GPS antenna included
- 50 ft antenna cable
Product Information
Brand: EndRun
Manufacturer: EndRun Technologies
Product Line: EndRun Meridian
Model: II Precision TimeBase
Product Type: Network time server
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: DHCP, FTP, IPv4, IPv6, NTP
Remote Management: HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Encryption: MD5, SHA
Features: DHCP client, Firmware upgradable, FTP client, Modular design, SNTP support, Syslog support
Connectivity
Interface Provided: 1 x antenna - TNC, 1 x RS-232 - DB-9, 2 x 1000Base-T - RJ-45, 3 x clock input/output timing port - BNC
Expansion Slots: 5 (total) / 3 (free) x expansion slot
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
MTBF: 30 Year
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Alarm, Status
Built-in Devices: GPS, Keypad, Status LCD
Dimensions and Weight
Height: 1.8 inch
Width: 17.2 inch
Depth: 11.8 inch
Weight: 8 lbs
Included Items
Included Accessories: Clamps, GPS antenna, Mounting pipe
Cables: 1 x antenna cable - 50 ft
Certifications and Listing
Compliant Standards: FCC, RoHS, WEEE
Warranty
Service Activation: No
