Product Information

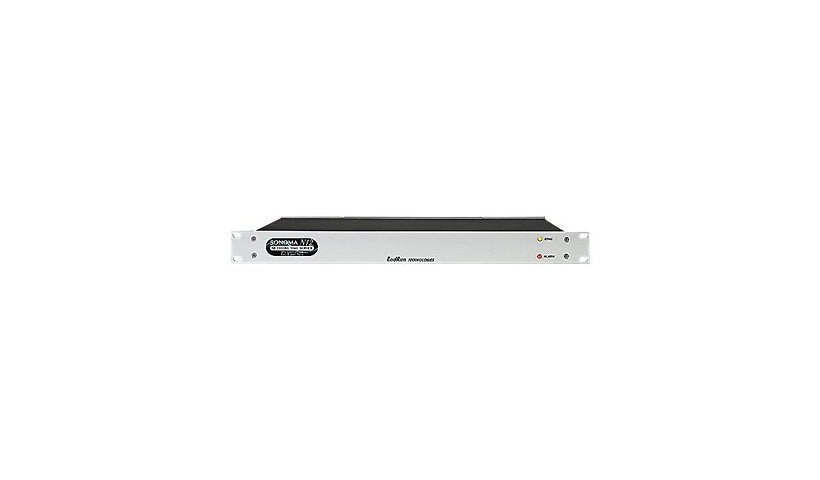

The EndRun Sonoma N12 GPS (3029-0001-000) is a rack mount stratum 1 network time server that gives an accurate, secure time source inside your firewall, handling 7,500 NTP requests per second. It has two gigabit RJ-45, a TNC antenna port, a DB-9 serial port and two BNC outputs, set up by DHCP or front panel keypad. It supports SNTP, IPv6, SNMP v1 to v3, SSH, web and syslog, draws about 10 W and comes with a GPS antenna, a 50 ft antenna cable, a null modem cable and a 6 ft patch cable.
Key Features
- Stratum 1 NTP server
- GPS referenced
- 7,500 NTP requests/sec
- 2 x gigabit Ethernet
- Antenna and cables included
- SNMP, SSH, web
Product Information
Brand: EndRun
Manufacturer: EndRun Technologies
Product Line: EndRun
Model: Sonoma N12 (GPS)
Product Type: Network time server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: DHCP, FTP, NTP
Remote Management: HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Encryption: MD5
Network Device: NTP requests: 7500 packets per second
Features: DHCP client, Firmware upgradable, IPv4 support, IPv6 support, SNTP support, Syslog support
Connectivity
Interface Provided: 1 x antenna - TNC, 1 x RS-232 - DB-9, 2 x - BNC, 2 x 1000Base-T - RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 10 watt
Memory and Processor
Clock Speed: 1.2 GHZ
RAM Installed: 512 megabyte
Flash Memory Installed: 512 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Status Indicators: Fail, Link/activity, Port transmission speed
Built-in Devices: GPS
Dimensions and Weight
Height: 1.8 inch
Width: 17 inch
Depth: 10.7 inch
Weight: 5.03 lbs
Included Items
Included Accessories: GPS antenna
Cables: 1 x antenna cable - 50 ft, 1 x null modem cable, 1 x patch cable - 6 ft
Certifications and Listing
Compliant Standards: FCC, RoHS
