Product Information

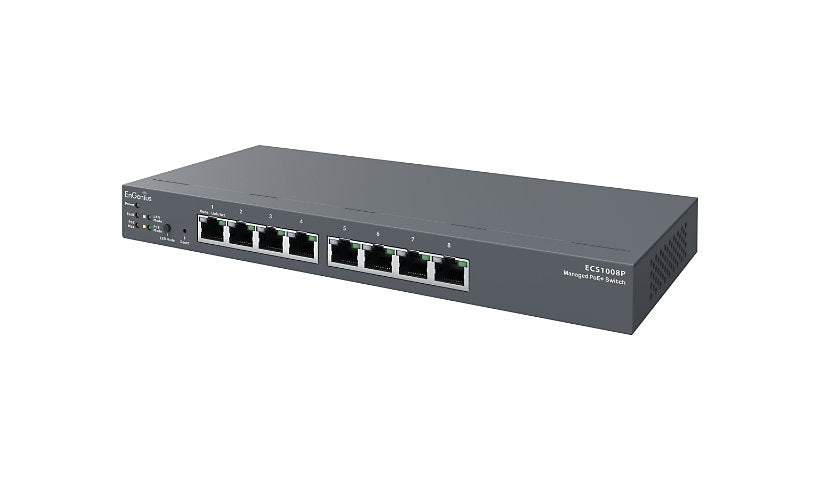

EnGenius' ECS1008P is a cloud managed desktop switch with eight Gigabit PoE ports and a 55 W PoE budget. It offers 16 Gbps of switching capacity with ACLs, ARP inspection, DHCP snooping and IGMP snooping, and includes a wall mount kit.
Key Features
- 8 x 10/100/1000 RJ-45 PoE ports
- 55 W PoE budget
- 16 Gbps switching capacity
- Cloud managed, ACL, DHCP snooping
- Desktop, wall mount kit included
- External power adapter
Product Information
Brand: EnGenius
Manufacturer: Engenius
Product Line: EnGenius Cloud Switch Series
Model: ECS1008P
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet, TFTP
Authentication Method: RADIUS
Encryption: SSL
Performance: Switching capacity: 16 Gbps
Capacity: ARP entries: 192, IPv4 routes (static): 63, IPv6 routes: 21, Multicast groups: 256, Priority QoS queues: 8, Static ARP entries: 192, VLAN IDs: 4094
MAC Address Table Size: 8000 entries
Jumbo Frame Support: 9KB
Features: 512KB packet buffer, Access Control List (ACL) support, ARP filtering, ARP inspection, Bandwidth control, Class of Service (CoS), DHCP relay, DHCP snooping, DSCP Trust, Flow control, Full duplex capability, IGMP snooping, Import SSL certificate, IPv4 support, IPv6 support, Link Aggregation, Loopback detection, MAC and IP-based ACLs support, MLD snooping, Multicast filtering function, Port Security, Port-based VLAN, Protocol-based VLANs support, Quality of Service (QoS), Reset button, Scheduler, Secure backup, Selectable Operation Modes, Spanning Tree Protocol (STP) support, SSH support, Store and forward, Syslog support, Time-controlled ACLs support, VLAN Tagging, Voice VLAN, Weighted Round Robin (WRR)
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000 (PoE)
Interface Provided: 8 x 1000Base-T RJ-45 PoE
Power Over Ethernet (PoE): PoE
Power
Device Type: External power adapter
Frequency: 50 - 60 hertz
Power Consumption Operational: 63.18 watt
PoE Budget: 55 watt
Memory and Processor
RAM Installed: 256 megabyte
Memory Technology: SDRAM
Flash Memory Installed: 32 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Fail, LAN, Link/activity/speed, PoE, PoE max, Power
Dimensions and Weight
Height: 1.1 inch
Width: 9.4 inch
Depth: 4.1 inch
Weight: 21.87 ounce
Included Items
Included Accessories: Wall mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Compliant Standards: FCC, IC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
