Product Information

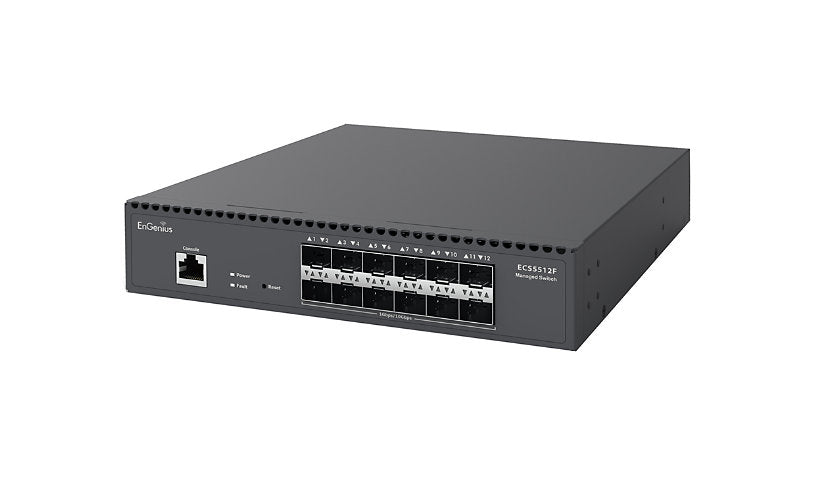

EnGenius' ECS5512F is a cloud managed L2+ aggregation switch with 12 10G SFP+ ports in a half-width 1U design, so two fit side by side in a 19 inch rack. It offers 240 Gbps of switching capacity with IGMP and MLD snooping, voice VLAN and remote monitoring.
Key Features
- 12 x 10G SFP+ ports
- 240 Gbps switching capacity
- Cloud managed, L2+
- IGMP/MLD snooping, voice VLAN
- Half-rack 1U, two per rack
- External power adapter
Product Information
Brand: EnGenius
Manufacturer: Engenius
Product Line: EnGenius CloudSwitch Aggregate 12
Model: ECS5512F
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 2+
Manageable: Yes
Remote Management: CLI, IPv4, IPv6, RMON 1, RMON 2, RMON 3, RMON 9, SNMP, SNMP 2c, SNMP 3, SSH, Syslog, Telnet
Routing Protocol: MLD
Authentication Method: RADIUS
Performance: Switching capacity: 240 Gbps
Capacity: ARP table: 192, IPv4 routes (static): 63, IPv6 routes (static): 21, Multicast groups: 256, Port security entries: 256, Static ARP entries: 192
MAC Address Table Size: 32K entries
Jumbo Frame Support: 10KB
Features: ACL MAC based, DHCP relay, DHCP snooping, Flow control, Full duplex capability, MLD snooping, Per port bandwidth control, QoS trust mode, SNTP support, Standalone use, Voice VLAN, Weighted Round Robin (WRR)
IoT Platform: EnGenius Cloud
Connectivity
Ports: 12
Port Quantity: 12
Port Type: 10 Gigabit SFP+
Interface Provided: 12 x 10GBase-T SFP+
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Memory and Processor
RAM Installed: 512 megabyte
Memory Technology: SDRAM
Flash Memory Installed: 128 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Status Indicators: Fault, Link/activity/speed, Power
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 8.3 inch
Depth: 9.1 inch
Weight: 3.06 lbs
Included Items
Included Accessories: Network cable, Power cable
Certifications and Listing
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x
