Product Information

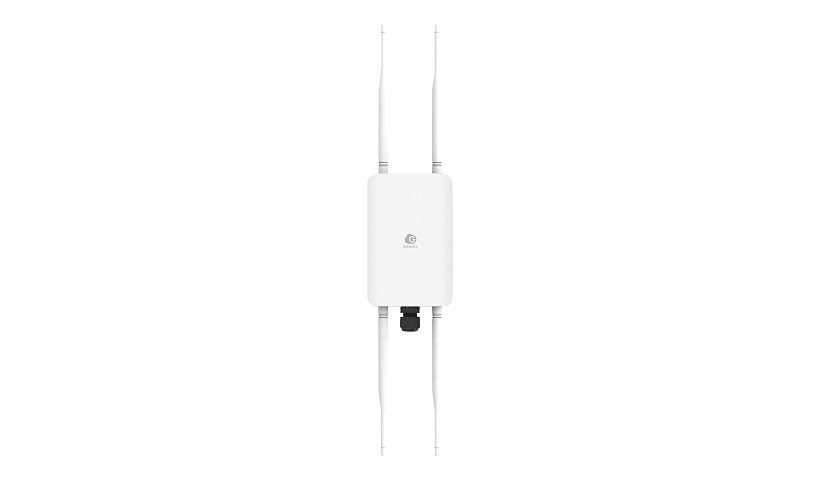

The EnGenius ECW160 is a cloud managed outdoor Wi-Fi 5 Wave 2 access point with 2x2:2 MU-MIMO and four 5 dBi omni antennas in an IP67 housing. It has a Gigabit PoE port, draws about 12.6 W, works from -4 to 140 °F and includes pole and wall mount brackets.
Key Features
- Wi-Fi 5 Wave 2, 2x2:2 MU-MIMO
- IP67 outdoor housing
- 4 x 5 dBi omni antennas
- Gigabit RJ-45, PoE
- -4 to 140 °F
- Pole and wall brackets
Product Information
Brand: EnGenius
Manufacturer: Engenius
Product Line: EnGenius Cloud Managed
Model: ECW160
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Remote Management: HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH
Encryption: AES, WPA2-Enterprise, WPA2-PSK
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, QPSK
Wireless LAN: 802.11a/b/g/n/ac Wave 2
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM
Network Device: Maximum throughput (2.4 GHz): 400 Mbps, Maximum throughput (5 GHz): 867 Mbps
Antennas: 4
Antenna Form Factor: External detachable
Antenna Gain Level: 5 DBi
Directivity: Omni-directional
Features: 2x2:2 MU-MIMO technology, Client isolation, Cross-band VLAN Pass Through, MAC address filtering, Management Information Base (MIB), Quality of Service (QoS), Spanning Tree Protocol (STP) support, VLAN Tagging, Wi-Fi Multimedia (WMM) support
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 12.6 watt
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 90%
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: 2.4 GHz, 5 GHz, LAN, Power
Dimensions and Weight
Height: 1.2 inch
Width: 4.4 inch
Depth: 6.8 inch
Weight: 10.4 ounce
Included Items
Included Accessories: Pole mount, Wall mount brackets
Certifications and Listing
Compliant Standards: IP67
Compliant Standards: IEEE 802.11e, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
