Product Information

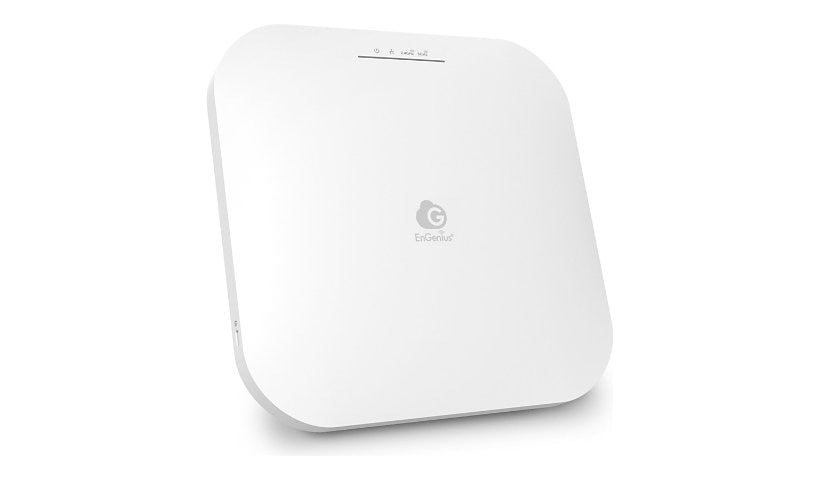

Managed from the cloud, the EnGenius ECW212L is an indoor Wi-Fi 6 access point with 4x4 MU-MIMO and eight internal antennas, up to 3.5 Gbps and 128 concurrent users. It has a 2.5G PoE+ port and comes with a wall/ceiling kit.
Key Features
- Wi-Fi 6 dual band, 4x4:4
- Up to 3.5 Gbps
- 8 internal antennas
- 2.5G RJ-45, PoE+
- Cloud managed
- Wall/ceiling kit included
Product Information
Brand: EnGenius
Manufacturer: Engenius
Product Line: EnGenius Cloud Managed
Model: ECW212L
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: HTTP, HTTPs, IPv4, IPv6
Remote Management: MIB, MIB 2, SNMP 1, SNMP 2c, SNMP 3
Encryption: AES, WPA2-PSK, WPA3-PSK
Data Transfer Rate: 3.5 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, QPSK
Capacity: Maximum concurrent users (per radio): 128, SSIDs total: 8
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 1148 Mbps, Maximum data rate (5 GHz): 2400 Mbps
Antennas: 8
Antenna Form Factor: Internal
Antenna Gain Level: 5 DBi
Directivity: Omni-directional
Features: 4x4 MU-MIMO technology, 4x4 SU-MIMO technology, 4x4:4 streams, Access Point operational mode, Auto channel selection, Client access control, Client isolation, Client load balancing, Cross-band VLAN Pass Through, Hide SSID in beacons, Mesh networking, Multiple SSID support, Packet aggregation A-MPDU, Packet aggregation A-SPDU, Private MIB, Quality of Service (QoS), Reset button, Security slot (Kensington security lock compatible), Spanning Tree Protocol (STP) support, SSID to VLAN tagging, Station operational mode, Wi-Fi Multimedia (WMM) support
Connectivity
Interface Provided: 1 x 2.5 GBase-T (PoE+) - RJ-45
Power Over Ethernet (PoE): PoE+
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 90%
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Wall / ceiling mountable
Status Indicators: 2.4 GHz, 5 GHz, LAN, Power
Dimensions and Weight
Height: 8.1 inch
Width: 8.1 inch
Depth: 1.3 inch
Weight: 20.1 ounce
Included Items
Included Accessories: Wall/ceiling mounting kit
Certifications and Listing
Compliant Standards: FCC, IC
Compliant Standards: IEEE 802.11e, IEEE 802.11k, IEEE 802.11r, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
