Product Information

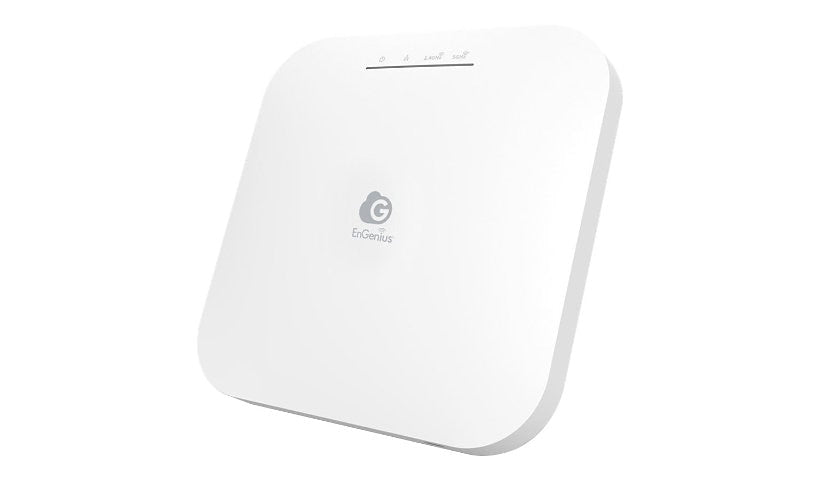

The EnGenius ECW230 is a low profile, cloud managed indoor Wi-Fi 6 access point with 4x4 MU-MIMO, offering up to 1,148 Mbps on 2.4 GHz and 2,400 Mbps on 5 GHz. It has a 2.5G PoE port and eight antennas, draws about 19.5 W and includes a wall and ceiling kit.
Key Features
- Wi-Fi 6 dual band, 4x4
- 1,148 + 2,400 Mbps
- 2.5G RJ-45, PoE
- 8 internal antennas
- About 19.5 W
- Wall / ceiling kit
Product Information
Brand: EnGenius
Manufacturer: Engenius
Product Line: EnGenius Cloud Managed
Model: ECW230
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Remote Management: SNMP 1, SNMP 2c, SNMP 3
Encryption: AES, WPA2-Enterprise, WPA2-PSK, WPA3
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, OFDMA, QPSK
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: OFDMA
Network Device: Maximum throughput (2.4 GHz): 1148 Mbps, Maximum throughput (5 GHz): 2400 Mbps
Antennas: 8
Antenna Form Factor: Internal
Antenna Gain Level: 3 DBi
Directivity: Omni-directional
Features: Ceiling mountable, Management Information Base (MIB), Management Information Base (MIB) II, MU-MIMO technology, Packet aggregation A-MPDU, Packet aggregation A-SPDU, Private MIB, Quality of Service (QoS), Reset button, Spanning Tree Protocol (STP) support, SSH support, VLAN support, VLAN Tagging, Wall mountable, Wi-Fi Multimedia (WMM) support
Connectivity
Interface Provided: 1 x 2500Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 19.5 watt
Memory and Processor
Processor Brand: ARM
Processor Type: Cortex-A53
Processors Installed: 1
Clock Speed: 2 GHZ
Total Processor Supported: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 90%
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Status Indicators: 2.4 GHz, 5 GHz, LAN, Power
Dimensions and Weight
Height: 1.3 inch
Width: 8.3 inch
Depth: 8.3 inch
Weight: 21.06 ounce
Included Items
Included Accessories: Wall/ceiling mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.11e, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af
Compliant Standards: FCC, IC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
