Product Information

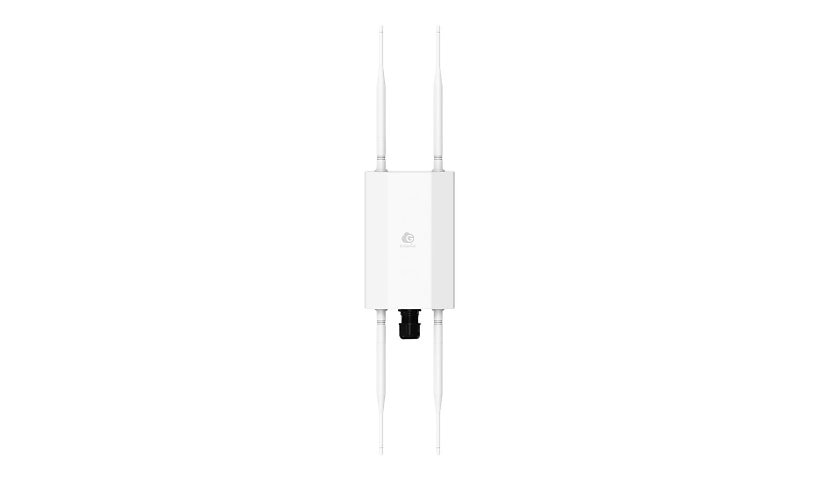

The EnGenius ECW260 is a cloud managed outdoor Wi-Fi 6 access point in an IP67 weatherproof housing. It has four 5 dBi omni antennas, a 2.5G PoE+ port, a -4 to 140 °F operating range and about 15.9 W draw, and includes pole and wall mount brackets.
Key Features
- Outdoor Wi-Fi 6 dual band
- IP67 weatherproof
- 2.5G RJ-45, PoE+
- 4 x 5 dBi antennas
- -4 to 140 °F
- Pole and wall brackets
Product Information
Brand: EnGenius
Manufacturer: Engenius
Product Line: EnGenius Cloud Managed
Model: ECW260
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Remote Management: SNMP 1, SNMP 2c, SNMP 3
Encryption: AES, WPA2-Enterprise, WPA2-PSK
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, OFDMA, QPSK
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: OFDMA
Network Device: Maximum throughput (2.4 GHz): 574 Mbps, Maximum throughput (5 GHz): 1200 Mbps
Antennas: 4
Antenna Form Factor: External detachable
Antenna Gain Level: 5 DBi
Directivity: Omni-directional
Features: Ceiling mountable, Management Information Base (MIB), Management Information Base (MIB) II, MU-MIMO technology, Packet aggregation A-MPDU, Packet aggregation A-SPDU, Private MIB, Quality of Service (QoS), Reset button, Spanning Tree Protocol (STP) support, SSH support, VLAN support, VLAN Tagging, Wall mountable, Wi-Fi Multimedia (WMM) support
Connectivity
Interface Provided: 1 x 2.5 GBase-T (PoE+) - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Power Consumption Operational: 15.9 watt
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 90%
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: Wall / pole mountable
Status Indicators: 2.4 GHz, 5 GHz, LAN, Power
Dimensions and Weight
Height: 2.1 inch
Width: 4.9 inch
Depth: 7.5 inch
Weight: 24.69 ounce
Included Items
Included Accessories: Pole mount, Wall mount brackets
Certifications and Listing
Compliant Standards: IP67
Compliant Standards: IEEE 802.11e, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
