Product Information

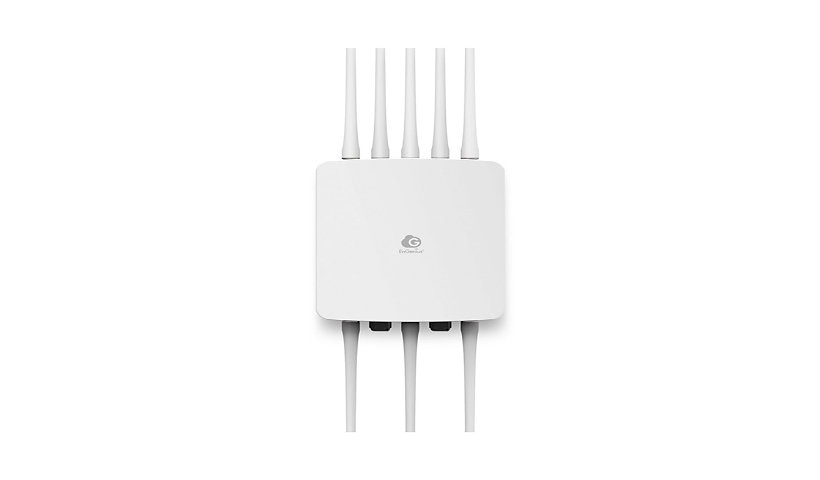

EnGenius' ECW270 is a cloud managed outdoor Wi-Fi 6 access point with 4x4:4 MU-MIMO up to 2.4 Gbps and up to 512 SSIDs. It is IP68 rated with surge and ESD protection, works from -4 to 149 °F, and has a 2.5G PoE++ port and a Gigabit port. Wall and pole brackets are included.
Key Features
- Wi-Fi 6 dual band, 4x4:4
- Up to 2.4 Gbps
- IP68, -4 to 149 °F
- 2.5G (PoE++) + 1G RJ-45
- Cloud managed
- Wall/pole brackets included
Product Information
Brand: EnGenius
Manufacturer: Engenius
Product Line: EnGenius Cloud Managed
Model: ECW270
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Remote Management: HTTP, HTTPS, IPv4, IPv6, MIB, SNMP 1, SNMP 2c, SNMP 3
Encryption: WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
Data Transfer Rate: 2.4 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, QPSK
Capacity: Concurrent users: 512, SSIDs per device: 8
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum throughput (2.4 GHz): 1200 Mbps, Maximum throughput (5 GHz): 2400 Mbps
Antennas: 4
Antenna Form Factor: External
Antenna Gain Level: 7 DBi
Directivity: Omni-directional
Features: 4KV ESD Protector, 4x4 SU-MIMO technology, 4x4:4 MU-MIMO technology, 4x4:4 streams, 8KV ESD Protector, Auto Channel Select (ACS), Client isolation, Client load balancing, Cross-band VLAN Pass Through, Fast Roaming, Managed, Quality of Service (QoS), Spanning Tree Protocol (STP) support, SSID to VLAN tagging, VLAN management, VLAN Tagging
Connectivity
Ports: 2
Interface Provided: 1 x 2.5 GBase-T (PoE++) - RJ-45, 1 x Ethernet 1000 - RJ-45
Power Over Ethernet (PoE): PoE++
Power
Power Consumption Operational: 46 watt
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: = 90%
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: Wall / pole mountable
Status Indicators: 2.4 GHz, 5 GHz, LAN, Power
Dimensions and Weight
Height: 2.1 inch
Width: 8.6 inch
Depth: 11.2 inch
Weight: 4.12 lbs
Included Items
Included Accessories: 2 mounting brackets, Product card, Wall mount screws
Certifications and Listing
Compliant Standards: FCC, IC, IP68
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.3ab, IEEE 802.3u
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
