Product Information

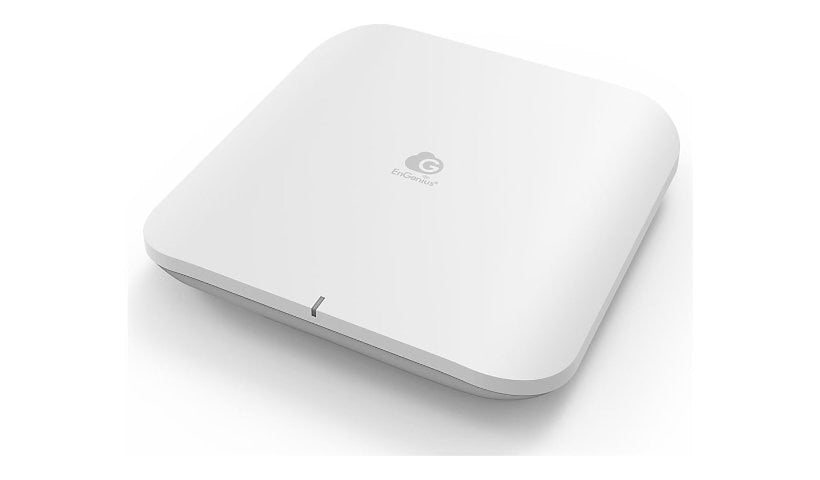

EnGenius' ECW536S is a cloud managed indoor Wi-Fi 7 access point with 4x4:4 MU-MIMO on 2.4, 5 and 6 GHz. It has two 10G ports and runs on PoE++ or a 12 V DC input, drawing about 37 W, and includes a ceiling mount base, screws and a T-rail kit.
Key Features
- Wi-Fi 7 tri-band, 4x4:4
- 2 x 10G RJ-45
- PoE++ or 12 V DC
- About 37 W
- Fast roaming 802.11k/r
- Ceiling mount and T-rail kit
Product Information
Brand: EnGenius
Manufacturer: Engenius
Product Line: EnGenius Cloud Managed
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Remote Management: HTTP, HTTPS, MIB, SNMP 1, SNMP 2c, SNMP 3
Encryption: WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Antennas: 4
Antenna Form Factor: Internal
Directivity: Omni-directional
Features: 4x4 SU-MIMO technology, 4x4:4 MU-MIMO technology, AP mode, Auto channel selection, DFS support, Fast Roaming, IPv4 support, IPv6 support, MIB support, Multiple Basic Service Set Identifier (MBSSID), Private MIB, Quality of Service (QoS), Reset button, SNMP support, Spanning Tree Protocol (STP) support, VLAN Tagging, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), Zero-wait DFS
Connectivity
Interface Provided: 2 x 10Gb Ethernet - RJ-45, Power input
Power Over Ethernet (PoE): PoE++
Power
Device Type: External power adapter
Required Voltage: DC 12 volt
Power Consumption Operational: 37 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Wall / ceiling mountable
Dimensions and Weight
Height: 1.6 inch
Width: 9.1 inch
Depth: 9.1 inch
Weight: 2.8 lbs
Included Items
Included Accessories: Ceiling mount base, Mounting screws, T-Rail mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3u
Compliant Standards: FCC, IC, UCKA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
