Product Information

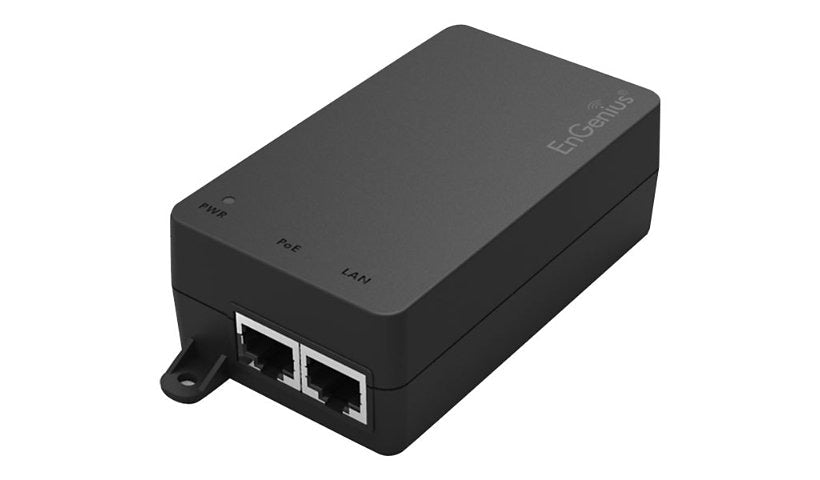

EnGenius' EPA5006GAT is a single port Gigabit PoE adapter that delivers data and up to 30 W to an 802.3at or 802.3af access point or device where no outlet is nearby. It runs from 100 to 240 V AC and can be wall mounted.
Key Features
- 1 x Gigabit PoE+ output
- Up to 30 W, 802.3at/af
- AC 100-240 V input
- Wall mountable
- Power adapter included
Product Information
Brand: EnGenius
Manufacturer: Engenius
Product Line: EnGenius
Model: EPA5006GAT
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Color Category: Black
Network and Communication
Features: Wall Mountable
Connectivity
Interface Provided: 1 x Gigabit LAN - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Required Voltage: AC 100-240 volt
Frequency: 47 - 63 hertz
Power Device Features: Overcurrent protection, Overvoltage protection, Short-circuit protection
Input Connector Type: Power IEC 60320 C6
Power Output Connectors Details: 1 x RJ-45
Power Provided: 30 watt
Form Factor (Power Device): External
Output Connector Type: RJ-45
Surge Suppression: Yes
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 90%
Dimensions and Weight
Height: 1.3 inch
Width: 2.7 inch
Depth: 3.9 inch
Weight: 5.28 ounce
Included Items
Included Accessories: Power adapter
Certifications and Listing
Compliant Standards: EN 55022:2010, EN 55024:2010, FCC Part 15 Class B, IEC 60950-1:2005 + A1, UL 60950-1
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
ENERGY STAR Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
