Product Information

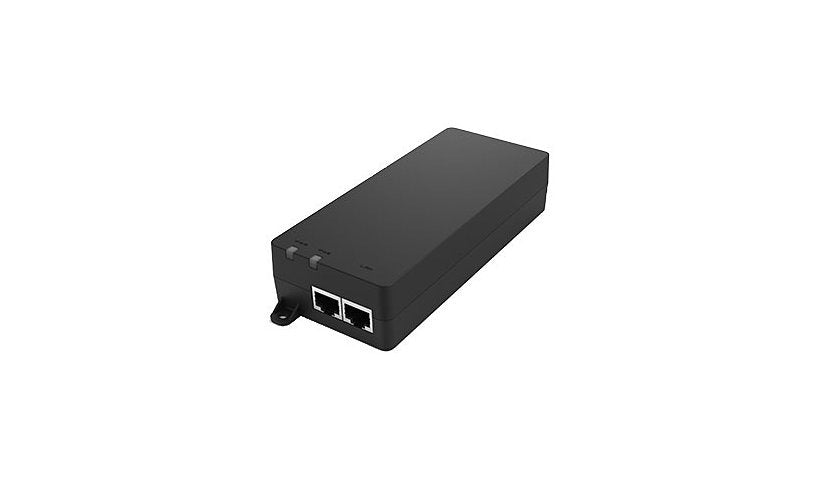

EnGenius' EPA5090GBT is a Gigabit injector that delivers up to 90 W under 802.3af, at and bt to cameras, access points and other network hardware. It runs on 100 to 240 V AC.
Key Features
- Gigabit RJ-45 in and PoE++ out
- Up to 90 W
- 802.3af / at / bt
- AC 100-240 V input
Product Information
Brand: EnGenius
Manufacturer: Engenius
Product Line: EnGenius
Model: EPA5090GBT
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Color Category: Black
Connectivity
Interface Provided: 2 x Gigabit LAN - RJ-45
Power Over Ethernet (PoE): PoE++
Power
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Device Features: 4 kV ESD protection (contact), 8 kV ESD protection (Air), Overcurrent protection, Overvoltage protection, Short-circuit protection
Input Connector Type: Power IEC 60320 C6
Power Output Connectors Details: 2 x RJ-45 90 W
Power Provided: 90 watt
Form Factor (Power Device): External
Surge Suppression: Yes
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Dimensions and Weight
Height: 1.3 inch
Width: 2.6 inch
Depth: 5.9 inch
Weight: 12.45 ounce
Certifications and Listing
Compliant Standards: EN 55024:2010, EN 55032:2012/AC:2013, FCC Part 15 Subpart B, IEC 60950, IEC 61000-4-5, IEC 62328-1: 2014, UL 62328-1
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
Warranty
Service Activation: No
Not sure this fits your setup? Send us the model of the device you need to power or connect and the DatorPro team will confirm compatibility before you order.
