Product Information

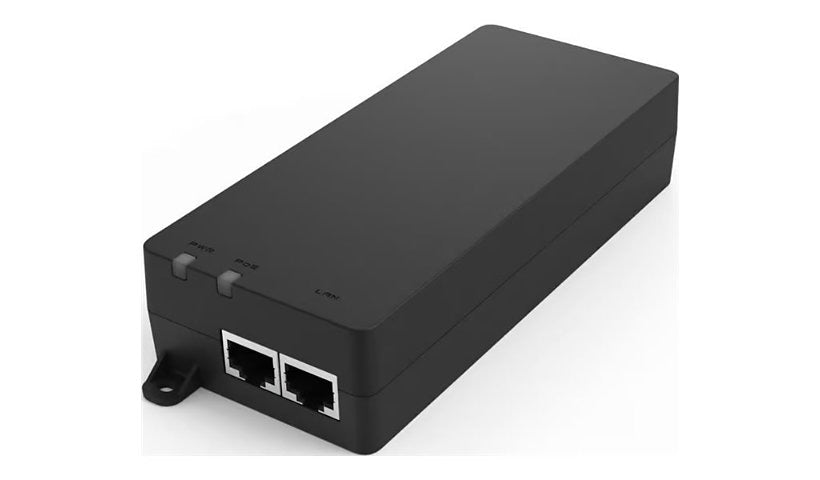

EnGenius' EPA5090XBT is a single port PoE injector, not a switch. It adds up to 90 W of 802.3af/at/bt power to a multi-gigabit link up to 10GbE, runs on 100 to 240 V AC and can be mounted on a wall or ceiling.
Key Features
- 90 W PoE++ output (802.3bt)
- 2 x 1/2.5/5/10G RJ-45 ports (in and out)
- Backward compatible with 802.3af/at
- AC 100 to 240 V input
- Wall or ceiling mount, LED status
Product Information
Brand: EnGenius
Manufacturer: Engenius
Product Line: EnGenius
Model: EPA5090XBT
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Color Category: Black
Network and Communication
Features: Ceiling mountable, LED Indicator, Wall Mountable
Connectivity
Interface Provided: 2 x 1/2.5/5/10 Gigabit LAN - RJ-45
Power Over Ethernet (PoE): PoE++
Power
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Emergency Power Off: 4 kV ESD protection (contact), 8 kV ESD protection (Air), Overcurrent protection, Overvoltage protection, Short-circuit protection
Input Connector Type: Power IEC 60320 C6
Power Output Connectors Details: 1 x RJ-45 90 W
Power Provided: 90 watt
Form Factor (Power Device): External
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Dimensions and Weight
Height: 1.3 inch
Width: 2.6 inch
Depth: 5.9 inch
Weight: 12.45 ounce
Certifications and Listing
Compliant Standards: EN 55024:2010, EN 55032:2012/AC:2013, FCC Part 15 Subpart B, IEC 62328-1: 2014, UL 62328-1
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
