Product Information

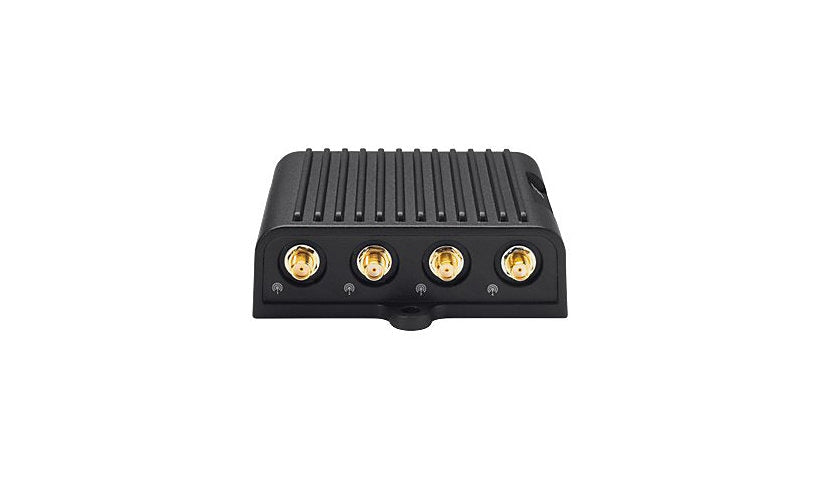

The Ericsson (Cradlepoint) RC1250 is an external 5G and LTE modem with a 2.5G Ethernet port and four detachable antennas on SMA connectors, listed at up to 4.9 Gbps. It supports a wide set of 5G NR and LTE bands, draws about 3.3 W and runs from -40 to 158 °F. This is a cellular modem, not an antenna, and it requires service activation.
Key Features
- 5G NR / LTE modem
- Up to 4.9 Gbps (listed)
- 2.5G RJ-45
- 4 x SMA detachable antennas
- -40 to 158 °F
- Service activation required
Product Information
Brand: Ericsson
Manufacturer: CradlePoint
Product Line: Ericsson
Model: RC1250
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
High-Speed Communication Standard: LTE
Data Link Protocols: 2.5 Gigabit Ethernet
Modem Transmission Data Rate: 4.9 GBps
Line Coding Format: 256 QAM
Cellular Data Connectivity Technology: 5G FR1, 5G NR, LTE
Cellular Generation: 5G
Cellular Band: 5G n2/n5/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n70/n71/n77/n78 / LTE B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B38/B41/B42/B43/B48/B66/B71
Ethernet Technology: Wireless
Antennas: 4
Antenna Form Factor: External detachable
Connectivity
Interface Provided: 1 x 2.5GBase-T - RJ-45, 4 x antenna - SMA
Power
Power Consumption Operational: 3.3 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95%
MTBF: 2,540,101 Hours
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 1.2 inch
Width: 4.3 inch
Depth: 3.7 inch
Weight: 11.57 ounce
Certifications and Listing
Compliant Standards: Act SOR/2012-285, BSS 7239, CB Scheme, Class 1 Division 2, CP65, E-mark certified, EN 62368-1, IP64, NFPA 130, REACH 1907/2006/CE, RoHS 2011/65/EC, SAE J1455, TSCA, UL/cUL
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - limited lifetime warranty
Service Activation: Yes
