Product Information

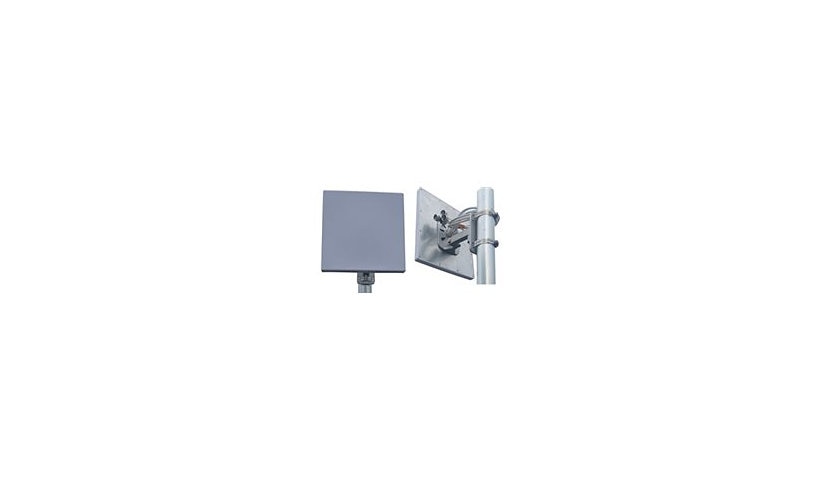

The Extreme Networks AIO-TQ06120-N is an outdoor tri-band panel antenna covering 2.4, 5 and 6 GHz at 6 dBi, with a 120° horizontal beam. It has four N-type male connectors on 3.3 ft cables, an aluminum and plastic body rated -40 to 158 °F, and includes a pole mounting bracket.
Key Features
- Tri-band 2.4 / 5 / 6 GHz
- 6 dBi panel, 120° horizontal
- 4 x N-type male, 3.3 ft cables
- VSWR 2:1
- -40 to 158 °F
- Pole mount bracket included
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Antenna Gain: 6 dBi
Antenna Placement: Outdoor, Pole mount
Frequency Range: 2.4 - 2.5 GHz, 5.15 - 5.85 GHz, 5.925 - 7.125 GHz
Features: 50W max. input power, Vertical polarisation
Connectivity
Antenna Cable Length: 3.3 ft
Connector Provided: 4 x N connector male
Technical Information
Impedance: 50 ohm
Antenna Form Type: Panel
Horizontal Beamwidth: 120°
Vertical Beamwidth: 50°, 60°
Voltage Standing Wave Ratio (VSWR): 2:1
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Physical Characteristics
Mounting Kit: Included
Materials: Aluminum, Plastic
Dimensions and Weight
Height: 9.8 inch
Width: 9.8 inch
Depth: 1 inch
Weight: 28.22 ounce
Included Items
Package Content: Mounting Bracket
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
