Product Information

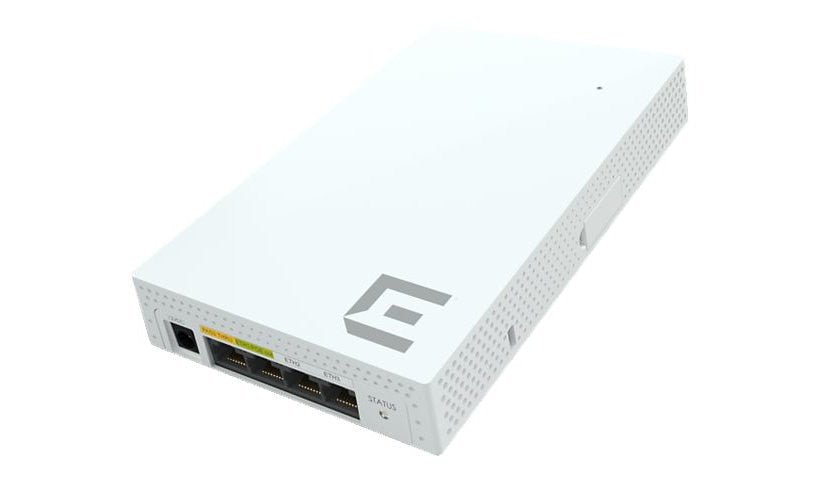

The ExtremeCloud IQ AP302W is a wall plate Wi-Fi 6 access point with 2x2:2 MU-MIMO, Bluetooth and Zigbee radios. Along with a PoE+ powered Gigabit uplink it offers three Gigabit PoE+ ports, two pass-through RJ-45 jacks and a USB port, and draws about 23.6 W.
Key Features
- Wi-Fi 6, 2x2:2 MU-MIMO
- Wall plate design, plate included
- 3 x Gigabit PoE+ out, 2 pass-through
- Bluetooth and Zigbee
- USB port
- ExtremeCloud IQ managed
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeCloud IQ
Model: AP302W
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Remote Management: RADIUS
Authentication Method: RADIUS
Line Coding Format: 256 QAM, DSSS, OFDM
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax, Bluetooth, ZigBee
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 4
Antenna Form Factor: Internal
Directivity: Omni-directional
Features: 2x2:2 MU-MIMO technology, Auto-negotiation, Deep Packet Inspection (DPI), High-Throughput (HT) support, Private Pre-Shared Key (PPSK), Quality of Service (QoS), Security slot (Kensington security lock compatible), SU-MIMO technology, Transmit Beam-forming (TxBF) ready, Very High Throughput (VHT) support, VPN support, Wireless Intrusion Prevention System (WIPS)
Connectivity
Interface Provided: 1 x 1000Base-TX (PoE+) - RJ-45, 1 x USB 2.0 - Type A, 2 x pass-through - RJ-45, 3 x 1000Base-TX (PoE+) - RJ-45
Power
Power Consumption Operational: 23.6 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Status Indicators: Status
Built-in Devices: Light sensor, Power sensor
Dimensions and Weight
Height: 6.9 inch
Width: 4.2 inch
Depth: 1.1 inch
Weight: 15.17 ounce
Included Items
Included Accessories: Wall plate
Certifications and Listing
Compliant Standards: FCC
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 1, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Lifetime Limited
Service & Support Details: Limited warranty - lifetime
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
