Product Information

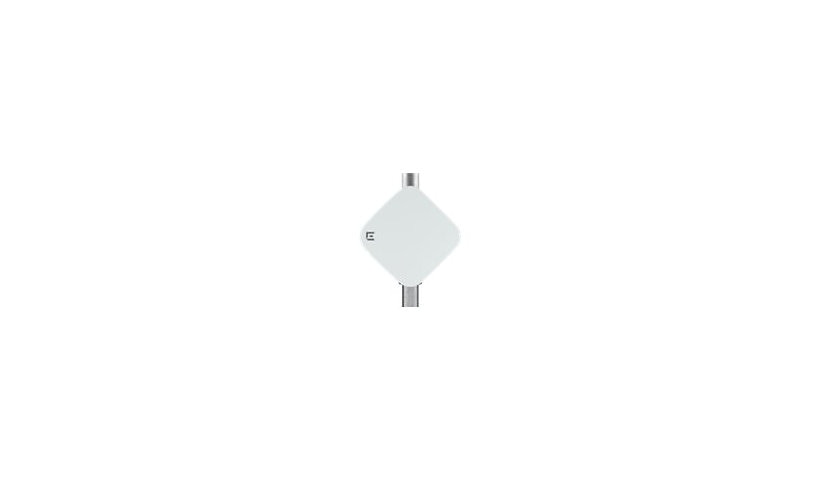

The ExtremeCloud IQ AP460C is an outdoor tri radio Wi-Fi 6 access point with dual 5 GHz support and up to 4.8 Gbps combined, plus threat sensing. It has 2.5G PoE+ and Gigabit ports, an IP67 rating, works from -40 to 140 °F and uses about 15.23 W.
Key Features
- Wi-Fi 6 tri radio, dual 5 GHz
- Up to 4.8 Gbps combined
- Threat sensor
- 2.5G PoE+ and 1G ports
- IP67, -40 to 140 °F
- ExtremeCloud IQ managed
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeCloud IQ
Model: AP460C
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: WPA3
Line Coding Format: 1024 QAM, 256 QAM
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax, Bluetooth
Network Band: 2.4 GHz (1 band) / 5 GHz (2 bands)
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Antenna Form Factor: Internal
Directivity: Omni-directional
Features: 2x2:2 MU-MIMO technology, 4x4:4 MU-MIMO technology, Bluetooth (BLE) clients support, Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Tri-Band
Connectivity
Interface Provided: 1 x 1/2.5GBase-T (PoE+) - RJ-45, 1 x 1000Base-T - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Power Consumption Operational: 15.23 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: Status
Built-in Devices: Light sensor, Power sensor
Dimensions and Weight
Height: 2.2 inch
Width: 9.4 inch
Depth: 9.4 inch
Weight: 3.97 lbs
Included Items
Included Accessories: Mounting kit
Certifications and Listing
Compliant Standards: AN/NZS 60950.1, AS/NZS 4268, CISPR 32, EN 300 328 V2.1.1, EN 300 440 V2.1.1, EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1, EN 301 489-3 V2.1.1, EN 301 893 V2.1.1, EN 50385, EN 50581:2012, EN 55011:2009+A1:2010, EN 55024:2010+A1:2015, EN 55032:2015 Class B, EN 60601-1-2, EN 60601-1-2:2015, EN 60950-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62311:2008, EN 62368, EN 62479:2010, FCC, FCC CFR47 Part 15 B Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, ICES-003 Class B, IEC 60601-1-2, IEC 60950-1, IEC 62368, Intertek, IP67, RoHS 2011/65/EU, RSS-247
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.4, IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
