Product Information

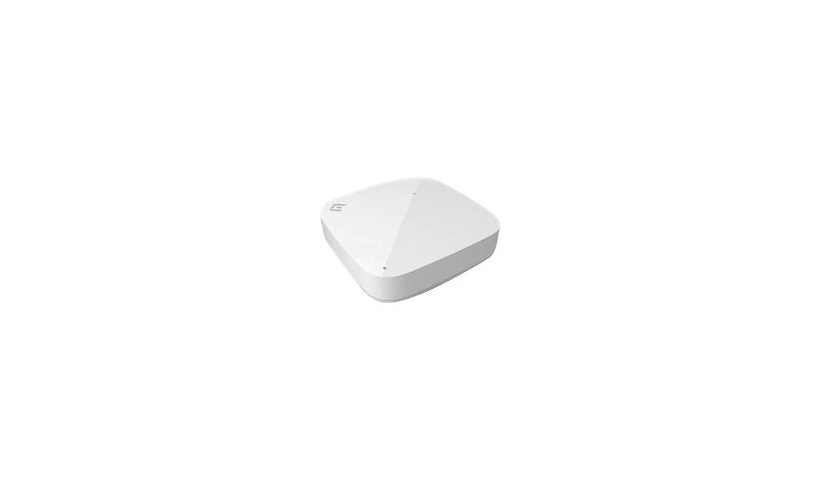

The Extreme Networks AP305C is an indoor Wi-Fi 6 access point with 2x2:2 MU-MIMO on both bands, delivering up to 2.4 Gbps across the two radios. It has a Gigabit PoE port, USB, Bluetooth 5.0 and Zigbee, and draws about 16.28 W.
Key Features
- Wi-Fi 6 dual band, 2x2:2
- Up to 2.4 Gbps combined
- Gigabit RJ-45, PoE
- USB port
- Bluetooth 5.0, Zigbee
- About 16.28 W
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeWireless
Model: AP305C
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: WPA3
Line Coding Format: 1024 QAM, 256 QAM
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax, Bluetooth 5.0
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Antenna Form Factor: Internal
Features: 2x2:2 MU-MIMO technology, Direct Sequence Spread Spectrum (DSSS), Dual band, Orthogonal Frequency Division Multiplexing (OFDM), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Security slot (Kensington security lock compatible), WPA encryption
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 16.28 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 1.5 inch
Width: 5.2 inch
Depth: 5.2 inch
Weight: 13.4 ounce
Certifications and Listing
Compliant Standards: AN/NZS 60950.1, AS/NZS 4268, CISPR 32, EN 300 328 V2.1.1, EN 300 440 V2.1.1, EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1, EN 301 489-3 V2.1.1, EN 301 893 V2.1.1, EN 50385, EN 50581:2012, EN 55011:2009+A1:2010, EN 55024:2010+A1:2015, EN 55032:2015 Class B, EN 60601-1-2, EN 60601-1-2:2015, EN 60950-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62311:2008, EN 62368, EN 62479:2010, FCC CFR47 Part 15 B Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, ICES-003 Class B, IEC 60601-1-2, IEC 60950-1, IEC 62368, Intertek, RoHS 2011/65/EU, RSS-247
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.4, IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
