Product Information

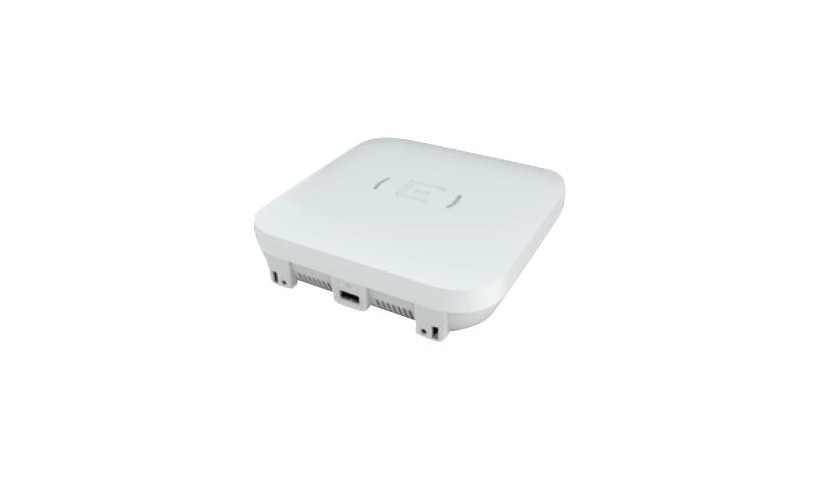

The Extreme Networks AP310I is a value focused indoor Wi-Fi 6 access point with two dual band 2x2:2 radios on one chip, plus integrated BLE and Zigbee. It has two Gigabit PoE ports and a USB 3.0 port, and draws about 14 W.
Key Features
- Wi-Fi 6, dual 2x2:2 radios
- Programmable radios, RF monitoring
- 2 x Gigabit RJ-45, PoE
- USB 3.0
- BLE and Zigbee
- About 14 W
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeWireless
Model: AP310I
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: Colombia, Puerto Rico, United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: WPA3
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax, Bluetooth
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: DSSS, OFDM
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Antenna Form Factor: Internal
Directivity: Omni-directional
Features: 2x2:2 MU-MIMO technology, Cellular Coexistence Filter (CCF), Direct Sequence Spread Spectrum (DSSS), Dual band, Orthogonal Frequency Division Multiple Access (OFDMA), Orthogonal Frequency Division Multiplexing (OFDM), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Security slot (Kensington security lock compatible), WPA encryption
Connectivity
Interface Provided: 1 x USB 3.0 - Type A, 2 x 1000Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 14 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 1.8 inch
Width: 6.5 inch
Depth: 6.5 inch
Weight: 24.69 ounce
Certifications and Listing
Compliant Standards: AN/NZS 60950.1, AS/NZS 4268, CISPR 32, EN 300 328 V2.1.1, EN 300 440 V2.1.1, EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1, EN 301 489-3 V2.1.1, EN 301 893 V2.1.1, EN 50385, EN 50581:2012, EN 55011:2009+A1:2010, EN 55024:2010+A1:2015, EN 55032:2015 Class B, EN 60601-1-2, EN 60601-1-2:2015, EN 60950-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62311:2008, EN 62368, EN 62479:2010, FCC CFR47 Part 15 B Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, ICES-003 Class B, IEC 60601-1-2, IEC 60950-1, IEC 62368, Intertek, RoHS 2011/65/EU, RSS-247, UL 2043
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.4, IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Lifetime Limited
Service & Support Details: Limited warranty - lifetime
Service Activation: No
