Product Information

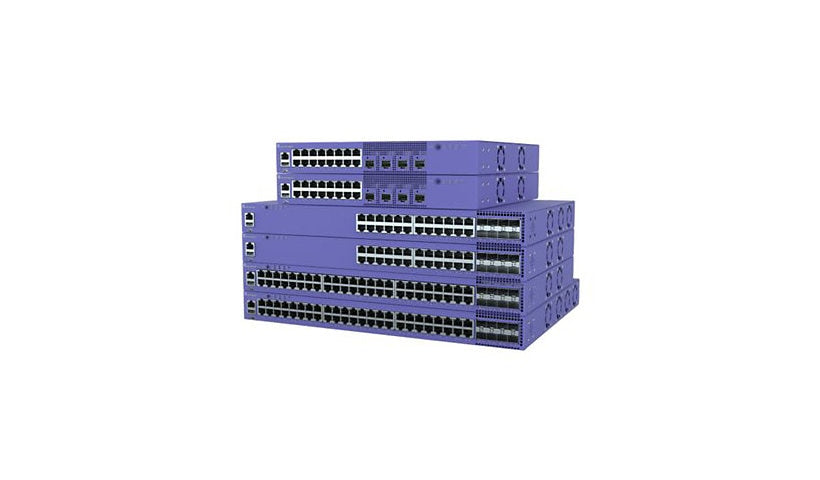

The Extreme Networks 5320-16P-4XE is a stackable Layer 3 switch with 16 Gigabit PoE ports and four 1/10G SFP+ uplinks, with MACsec support. It shares a 185 W PoE budget, stacks up to four units and includes a base software license with a 1 year ExtremeCloud IQ Pilot subscription.
Key Features
- 16 x 10/100/1000 RJ-45 PoE ports
- 4 x 1/10G SFP+ uplinks
- 185 W PoE budget
- Layer 3, MACsec, stacks up to 4 units
- Base license plus 1 year XIQ Pilot
- 1 power supply installed
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeSwitching
Model: 5320
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Purple
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI
Performance: Aggregate bandwidth: 112 Gbps, Frame rate: 83.3 Mpps
MAC Address Table Size: 32000 entries
Features: Auto-sensing per device, Full duplex mode, Half duplex mode, MACsec support
Max Units In A Stack: 4
Software Type: Base Software License, ExtremeCloud IQ Pilot (1 year)
Connectivity
Ports: 16
Port Quantity: 16
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+
Ports (3rd) Quantity: 2
Interface Provided: 1 x console (micro-USB), 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 1 x USB, 16 x 10/100/1000 Base-T RJ-45, 4 x 1/10GBase-X SFP+
Power Over Ethernet (PoE): PoE
QSFP Slots: SFP-DD (stackable)
Power
Device Type: Internal power supply
PoE Budget: 185 watt
Power Supplies Installed: 1
Voltage Required AC/DC: AC
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 95% RH (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 95% RH (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 12.2 inch
Depth: 11.8 inch
Weight: 6.61 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az
Compliant Standards: ACMA RCM, ANATEL, AS/NZS 60950-1, AS/NZS CISPR 32, BSMI, CCC, CDRH, CISPR 24 Class A, CISPR 32, CSA C22.2 No. 60950-1 Second Edition, EAC, EMC, EMC 2014/30/EU, EN 300 386, EN 55032 Class A, EN 60825-1 Class 1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 62368-1, EN55024, EN60950-1 (2nd Edition), FCC CFR21 Part 1040.10, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1 (CB Certificate), IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 62368-1 CB Scheme, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az, KCC, LVD 2014/35/EU, Mexico NOM, NRCS, UL 60950-1, UL/CUL 62368-1, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
