Product Information

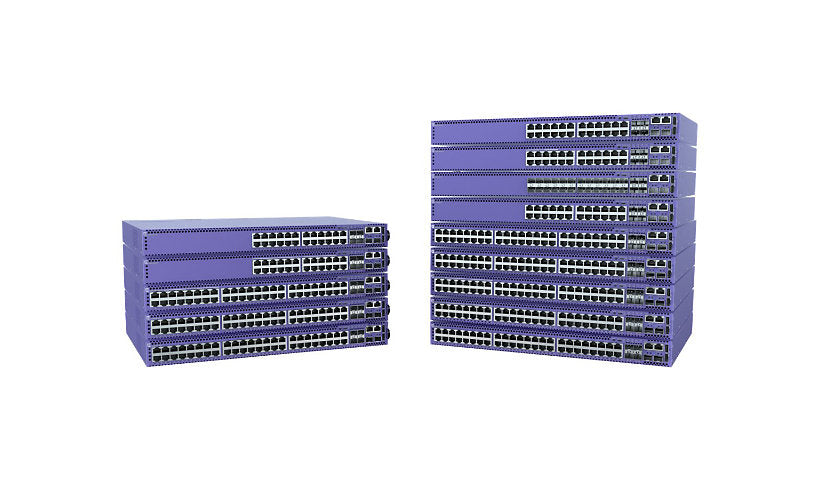

Extreme Networks' ExtremeSwitching 5420F-16MW-32P-4XE is a stackable Layer 3 edge switch with 16 2.5G PoE++ ports at 90 W, 32 Gigabit PoE+ ports and four 1/10G SFP+ uplinks, plus two SFP-DD stacking ports. It has an 1862 W PoE budget with one power supply installed and includes a 1 year ExtremeCloud IQ Pilot license.
Key Features
- 16 x 100M/1G/2.5G RJ-45 PoE++ ports, 90 W
- 32 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 4 x 1/10G SFP+ uplinks
- 2 x SFP-DD stacking ports, stack up to 8
- 1862 W PoE budget, 1 power supply installed
- MACsec, 1 year XIQ Pilot
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeSwitching 5420 Series
Model: 5420F-16MW-32P-4XE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Blue
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI
Encryption: 128-bit AES, 256-bit AES
Performance: Aggregate bandwidth: 304 Gbps, Frame rate: 226.2 Mpps
Features: Auto-sensing per device, Full duplex mode, Half duplex mode, LRM optics support, MACsec support
Max Units In A Stack: 8
Software Type: Base Software License, ExtremeCloud IQ Pilot (1 year)
Connectivity
Ports: 48
Port Quantity: 16
Port Type: 100/1000/2.5G (PoE++)
Ports (2nd) Quantity: 32
Ports Type (2nd): 10/100/1000 (PoE+)
Ports (3rd) Quantity: 4
Ports (4th) Quantity: 2
Ports (4th) Type: SFP-DD (stackable)
Interface Provided: 1 x console (micro-USB), 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 16 x 100/1000/2.5G RJ-45 PoE++ - 90 W, 2 x network stack device SFP-DD, 2 x USB, 32 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W, 4 x 1/10GBase-X SFP+ uplink
Power Over Ethernet (PoE): PoE++
QSFP Slots: 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power
Device Type: Internal power supply
Required Voltage: AC 100-120/200-240 volt
Power Provided: 1200 watt
PoE Budget: 1862 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 13 inch
Weight: 11.68 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ae, IEEE 802.3at, IEEE 802.3bt
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
