Product Information

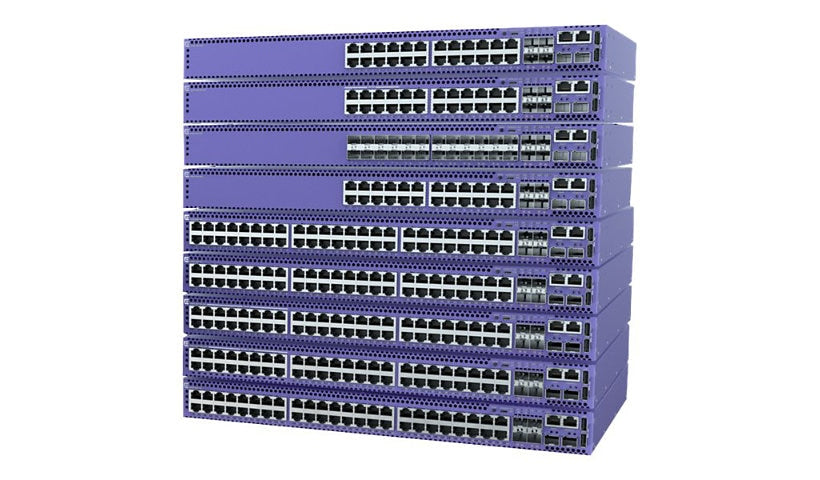

The Extreme Networks 5420M-48W-4YE is a stackable Layer 3 switch with 48 Gigabit ports that each deliver PoE++ up to 90 W, plus four 1/10/25G SFP28 uplinks and two SFP-DD stacking ports. It supports up to 2,880 W of PoE and MACsec, and includes a base software license with a 1 year ExtremeCloud IQ Pilot subscription.
Key Features
- 48 x 10/100/1000 RJ-45 PoE++ ports, up to 90 W
- 4 x 1/10/25G SFP28 uplinks
- 2 x SFP-DD stacking ports, up to 8 units
- Up to 2,880 W PoE
- Layer 3, MACsec
- Base license plus 1 year XIQ Pilot
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeSwitching
Model: 5420M
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Blue
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI
Encryption: 128-bit AES, 256-bit AES
Performance: Aggregate bandwidth: 376 Gbps, Frame rate: 279.7 Mpps
MAC Address Table Size: 64K entries
Features: Auto-sensing per device, Full duplex mode, Half duplex mode, MACsec support
Max Units In A Stack: 8
Software Type: Base Software License, ExtremeCloud IQ Pilot (1 year)
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000 (PoE++)
Ports (2nd) Quantity: 4
Ports Type (2nd): 1/10/25 Gigabit SFP28
Ports (3rd) Quantity: 2
Interface Provided: 1 x console (micro-USB), 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 2 x network stack device SFP-DD, 2 x USB, 4 x 1/10/25GBase-X SFP28, 48 x 10/100/1000 Base-T RJ-45 PoE++ - 90 W
Power Over Ethernet (PoE): PoE++
QSFP Slots: SFP-DD (stackable)
Power
Device Type: Internal power supply
PoE Budget: 2880 watt
Power Supplies Supported: 2
Redundant Power Supply: Optional
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 13 inch
Weight: 10.43 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ae, IEEE 802.3at, IEEE 802.3bt
ENERGY STAR Certified: No
