Product Information

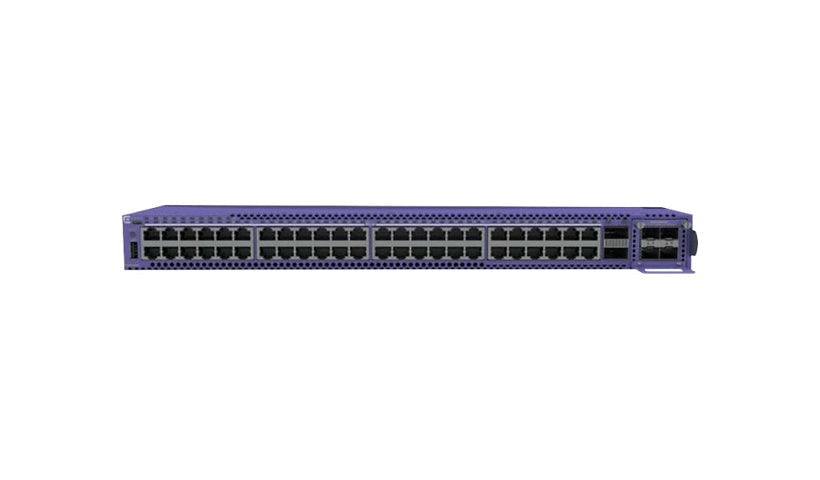

Extreme Networks' ExtremeSwitching 5520-12MW-36W is a stackable edge switch with 12 multi-gigabit PoE ports up to 5G and 36 Gigabit PoE ports, plus two QSFP28 stacking ports. It offers 792 Gbps of switching bandwidth and MACsec. Power supplies are not installed, and a 1 year XIQ Pilot subscription is included.
Key Features
- 12 x 100M/1G/2.5G/5G RJ-45 PoE ports
- 36 x 10/100/1000 RJ-45 PoE ports
- 2 x QSFP28 stacking ports, stack up to 8
- 792 Gbps switching, 589.3 Mpps
- Power supplies not installed
- 1 year XIQ Pilot subscription
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeSwitching 5520 series
Model: 5520-12MW-36W
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Purple
Network and Communication
Switching Type: 5 Gigabit Ethernet
Manageable: Yes
Performance: Aggregate switching bandwidth: 792 Gbps, Forwarding performance: 589.3 Mpps
Stackable: Stackable
Features: 3 fan trays, Energy-Efficient Ethernet (EEE), Media Access Control Security (MACsec)
Max Units In A Stack: 8
Bundled Services: 1 year XIQ Pilot subscription
Connectivity
Ports: 48
Port Quantity: 12
Port Type: 100/1000/2.5G/5G (PoE+)
Ports (2nd) Quantity: 36
Ports Type (2nd): 10/100/1000 (PoE+)
Interface Provided: 1 x console (micro-USB) Type B, 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 12 x 100/1000/2.5G/5G RJ-45 PoE+, 2 x network stack device QSFP28 stacking, 2 x USB Type A, 36 x 1000Base-T RJ-45
Expansion Slots: 1 (total) / 1 (free) x Versatile Interface Module (VIM)
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply (not installed)
Frequency: 50/60 hertz
Power Supplies Supported: 2
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 17.4 inch
Weight: 13.96 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3bt, IEEE 802.3by, IEEE 802.3bz
Compliant Standards: ACMA RCM, AS/NZS 60950-1, AS/NZS CISPR 32, ASTM D3580, BSMI, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1-14, CCC, CDRH, China RoHS SJ/T 11363-2006, CISPR 11 class A, CISPR 24:2010 Class A, CISPR 32 Class A, CNS 14336-1, Directive 2014/30/EU, EAC, EMC, EN 300 386 V1.6.1, EN 55011 class A, EN 55032 Class A, EN 60825-1 Class 1, EN 60950-1, EN 6100-3-2, EN 6100-3-3, EN 6100-4-2, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 62368-1, EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e, EN/ETSI 300 753, EN55024, FCC CFR21 Part 1040.10, FCC CFR47 Part 15 A, GB 4943.1-2011, GB/T9254-2008, ICES-003 Class A, IEC 60950-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1, KCC, LVD 2014/35/EU, NRCS, RoHS 2011/65/EU, RoHS CNS 15663, SABS, UL 60950-1, UL 62368-1, VCCI Class A, WEEE 2012/19/EU
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
