Product Information

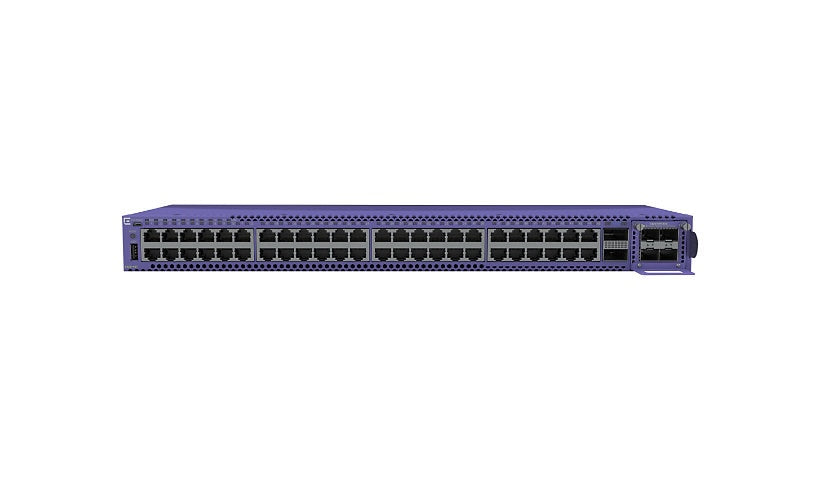

Extreme Networks' ExtremeSwitching 5520-48T is a stackable Layer 3 edge switch with 48 Gigabit RJ-45 ports and two QSFP28 stacking ports. It offers 696 Gbps of switching bandwidth and MACsec, and a 1 year ExtremeCloud IQ Pilot license is included. Power supplies are not installed.
Key Features
- 48 x 10/100/1000 RJ-45 ports
- 2 x QSFP28 stacking ports, stack up to 8
- 696 Gbps switching, 517.8 Mpps
- MACsec, Energy Efficient Ethernet
- Power supplies not installed
- 1 year ExtremeCloud IQ Pilot
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeSwitching 5520 series
Model: 5520-48T
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Purple
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Performance: Aggregate switching bandwidth: 696 Gbps, Forwarding performance: 517.8 Mpps
Capacity: Authenticated policy users/switch: 9216, BEB nodes per VSN: 500, Fabric adjacencies per switch: 128, Fabric nodes per area (BEB + BCB): 800, L2 VSN: 3500, L3 VSN: 256, Policy profiles: 63, Unique permit/deny rules per switch: 8120
Stackable: Stackable
Features: 3 fan trays, Auto-sensing per device, Energy Efficient Ethernet, Full duplex mode, Half duplex mode, MACsec support
Max Units In A Stack: 8
Software Type: ExtremeCloud IQ Pilot (1 year)
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000
Interface Provided: 1 x console (micro-USB) Type B, 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 2 x network stack device QSFP28, 2 x USB Type A, 48 x 10/100/1000 Base-T RJ-45
Expansion Slots: 1 (total) / 1 (free) x Versatile Interface Module (VIM)
Power
Device Type: Internal power supply (not installed)
Frequency: 50/60 hertz
Power Consumption Operational: 171 watt
Power Supplies Supported: 2
Redundant Power Supply: Optional
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 17.4 inch
Weight: 12.7 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3ab, IEEE 802.3az
Compliant Standards: ACMA RCM, ANATEL, AS/NZS 60950-1, AS/NZS CISPR32:2013, ASTM D3580, BSMI, CAN/CSA-C22.2 No. 60950-1, CB, CCC, CDRH, China RoHS, CISPR 24:2010 Class A, CISPR 32 Class A, CNS 15663, Directive 2011/65/EU, Directive 2014/35/EU, EAC, EMC, EMC 2014/30/EU, EN 300 386, EN 55011, EN 55032 Class A, EN 60825-1 Class 1, EN 60950-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-4-2, EN 62368-1, EN/ETSI 300 019-2-1 v2.1.2, EN/ETSI 300 753 (1997-10), EN55024, ETSI EN 300 019-2-2 V2.1.2, ETSI EN 300 019-2-3 V2.1.2, FCC CFR21 Part 1040.10, FCC CFR47 Part 15 A, IEC 60950-1, IEC 61000-4-2, IEC 61000-4-6, IEC 62368-1, IEC/EN 61000-4-11, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, KCC, NOM, NRCS, REACH, RoHS 2011/65/EU, SJ/T 11363-2006, Taiwan BSMI RoHS, UL 60950-1, UL/CUL 62368-1, VCCI Class A, WEEE 2012/19/EU
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
