Product Information

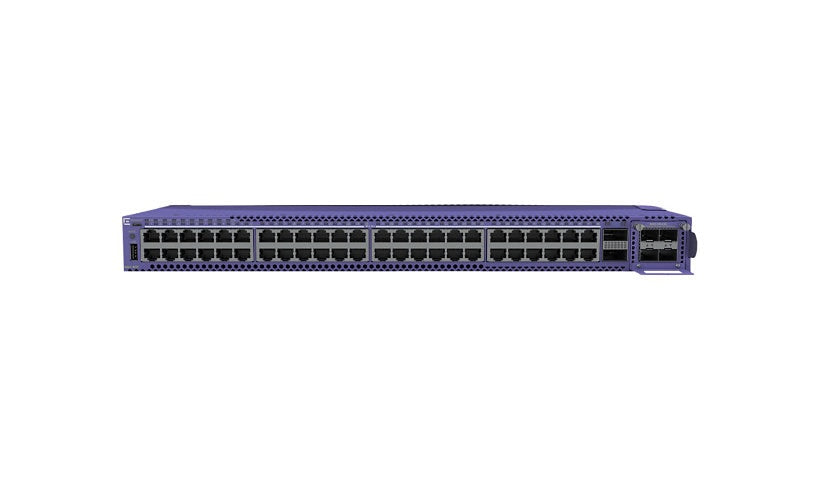

The Extreme Networks 5520-48W is a stackable switch with 48 Gigabit ports that can deliver 802.3bt PoE up to 90 W and support MACsec. Two QSFP28 ports handle stacking, and one VIM slot adds uplinks. It has two modular power supply slots that ship empty, so power supplies are ordered separately. A base software license and a 1 year XIQ Pilot subscription are included.
Key Features
- 48 x 10/100/1000 RJ-45 PoE ports, up to 90 W (802.3bt)
- MACsec capable
- 2 x QSFP28 stacking ports, 1 VIM slot
- 696 Gbps aggregate switching
- Stacks up to 8 units
- Power supplies not installed
- 1 year XIQ Pilot subscription
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeSwitching 5520 series
Model: 5520-48W
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Purple
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Performance: Aggregate switching bandwidth: 696 Gbps, Forwarding performance: 517.8 Mpps
Stackable: Stackable
Features: 3 fan modules, Energy-Efficient Ethernet (EEE), MACsec support
Max Units In A Stack: 8
Bundled Services: 1 year XIQ Pilot subscription
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000 (PoE)
Interface Provided: 1 x console (micro-USB) Type B, 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 2 x network stack device QSFP28 stacking, 2 x USB Type A, 48 x 10/100/1000 Base-T (PoE) RJ-45 90 W
Expansion Slots: 1 (total) / 1 (free) x Versatile Interface Module (VIM)
Power
Device Type: Internal power supply (not installed)
Frequency: 50/60 hertz
Power Consumption Operational: 59 watt
Power Supplies Supported: 2
Redundant Power Supply: Optional
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 17.4 inch
Weight: 13.36 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3bt, IEEE 802.3by, IEEE 802.3bz
Compliant Standards: ACMA RCM, AS/NZS 60950-1, AS/NZS CISPR 32, ASTM D3580, BSMI, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1-14, CCC, CDRH, China RoHS SJ/T 11363-2006, CISPR 11 class A, CISPR 24:2010 Class A, CISPR 32 Class A, CNS 14336-1, Directive 2014/30/EU, EAC, EMC, EN 300 386 V1.6.1, EN 55011 class A, EN 55032 Class A, EN 60825-1 Class 1, EN 60950-1, EN 6100-3-2, EN 6100-3-3, EN 6100-4-2, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 62368-1, EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e, EN/ETSI 300 753, EN55024, FCC CFR21 Part 1040.10, FCC CFR47 Part 15 A, GB 4943.1-2011, GB/T9254-2008, ICES-003 Class A, IEC 60950-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1, KCC, LVD 2014/35/EU, NRCS, RoHS 2011/65/EU, RoHS CNS 15663, SABS, UL 60950-1, UL 62368-1, VCCI Class A, WEEE 2012/19/EU
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
