Product Information

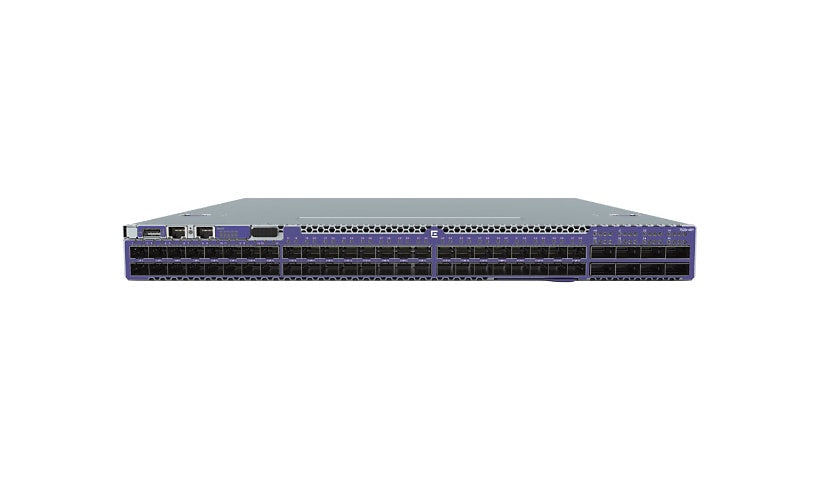

Extreme Networks' ExtremeSwitching 7520-48Y-8C is a stackable Layer 3 aggregation and core switch with 48 1/10/25G SFP28 ports and eight 40/100G QSFP28 ports. It offers 2 Tbps of switching capacity at about 800 ns of latency, with two AC power supplies, six fans and back to front airflow.
Key Features
- 48 x 1/10/25G SFP28 ports
- 8 x 40/100G QSFP28 ports
- 2 Tbps switching, 1000 Mpps
- Stack up to 8, zero touch provisioning
- 2 AC power supplies installed
- 6 fans, back to front airflow
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeSwitching
Model: 7520-48Y
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Purple
Network and Communication
Advanced Switching: Layer 3
Switching Type: 25 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS
Performance: Average latency: 800 ns, Forwarding rate: 1000 Mpps, Line rate: 4 Tbps, Switching capacity: 2 Tbps
Capacity: Packet buffer size: 32 MB
MAC Address Table Size: 294K entries
Stackable: Stackable
Features: 6 fans, Non-blocking architecture, Wire speed forwarding, Zero-touch provisioning (ZTP)
Features: Rear-to-front airflow
Max Units In A Stack: 8
Software Type: Base Software License
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 1/10/25 Gigabit SFP28
Ports (2nd) Quantity: 8
Ports Type (2nd): 40/100 Gigabit QSFP28
Interface Provided: 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 1 x USB Type A, 48 x 1/10/25Gbit LAN SFP28, 8 x 40/100Gbit LAN QSFP28
Power
Device Type: Internal power supply
Required Voltage: AC 100-140/200-240 volt
Power Consumption Operational: 469 watt
Power Provided: 800 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 16 GB
Memory Technology: DDR4 SDRAM
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 95% RH (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 95% RH (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Back to front airflow
Status Indicators: System
Built-in Devices: 128 GB SSD
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 21.2 inch
Weight: 16.71 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3by
Compliant Standards: ACMA RCM, ANATEL, AS/NZS 60950-1, AS/NZS CISPR 32, ASTM D3580, BSMI, CAN/CSA C22.2 No. 60950-1 Second Edition, CB, CCC, CDRH, China RoHS SJ/T 11363-2006, CISPR 24 Class A, CISPR 32 Class A, EAC, EMC 2014/30/EU, EN 300 386, EN 55032 Class A, EN 60825-1 Class 1, EN 60950-1 Second Edition, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 62368-1, EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e, EN/ETSI 300 753 (1997-10), EN55024, FCC CFR 47 Part 15 Class A, FCC CFR21 Part 1040.10, ICES-003 Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC/EN 61000-4-11, KCC, LVD 2014/35/EU, Mexico NOM, NRCS, REACH, RoHS 2011/65/EU, RoHS CNS 15663, UL 60950-1, UL/CUL 62368-1, VCCI Class A, WEEE 2012/19/EU
ENERGY STAR Certified: No
