Product Information

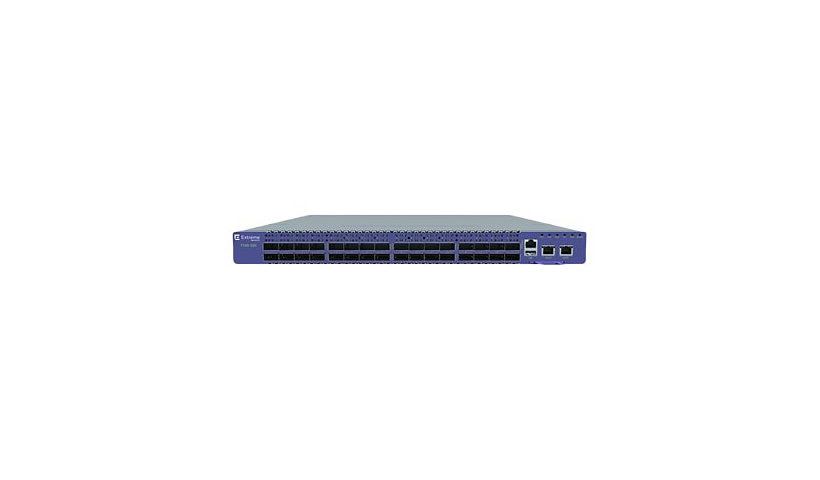

Extreme Networks' ExtremeSwitching 7720-32C is a stackable Layer 3 aggregation and core switch with 32 40/100G QSFP28 ports. It offers 6.4 Tbps of switching capacity and about 800 ns of latency, and this version ships with two AC power supplies, back to front airflow and a 4-post rack kit.
Key Features
- 32 x 40/100G QSFP28 ports
- 6.4 Tbps switching, 2000 Mpps
- 800 ns average latency
- Stack up to 8 units
- 2 AC power supplies installed, 1+1
- Back to front airflow, 4-post rack kit
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeSwitching
Model: 7720-32C
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Purple
Network and Communication
Advanced Switching: Layer 3
Switching Type: 100 Gigabit Ethernet
Manageable: Yes
Performance: Average latency: 800 ns, Forwarding rate: 2000 Mpps, Switching capacity: 6.4 Tbps
Capacity: 10G/25G ports (with QSFP+/QSFP28 breakout): 128, Packet buffer size: 32 MB, QoS priority queues per port: 8
Stackable: Stackable
Features: Rear-to-front airflow
Max Units In A Stack: 8
Connectivity
Ports: 32
Port Quantity: 32
Port Type: 100 Gigabit QSFP28 / 40 Gigabit QSFP28
Interface Provided: 1 x serial (console) RJ-45, 1 x USB Type A, 2 x management (Gigabit LAN) RJ-45, 32 x 100/400Gbit LAN QSFP28
Power
Device Type: Internal power supply
Required Voltage: AC 100-140/200-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 393 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Memory and Processor
Processors Installed: 1
RAM Installed: 16 GB
Memory Technology: DDR4 SDRAM
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Back to front airflow
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 22.4 inch
Weight: 19.84 lbs
Included Items
Included Accessories: 4-post rack mount kit
Certifications and Listing
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by
Compliant Standards: ACMA RCM, ANATEL, AS/NZS 60950-1, ASTM D3580, BSMI, CAN/CSA-C22.2 No. 60950-1, CCC, CDRH, China RoHS, CISPR 24 Class A, CISPR 32 Class B, Directive 2014/35/EU, EAC, EMC, EN 300 386, EN 55032 Class A, EN 60825-1 Class 1, EN 6100-3-3:2013, EN 61000-3-2:2014, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 62368-1, EN/ETSI 300 019-2-1 v2.1.2, EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e, EN/ETSI 300 753 (1997-10), EN55024, EN60950-1 (2nd Edition), EU REACH, FCC 47 CFR Part 15 B Class A, FCC CFR21 Part 1040.10, ICES-003 Class A, IEC 60950-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 62368-1, IEC/EN 61000-4-11, KCC, Mexico NOM, NRCS, RoHS 2011/65/EU, RoHS CNS 15663, UL 60950-1, UL/CUL 62368-1, VCCI Class A, WEEE 2012/19/EU
