Product Information

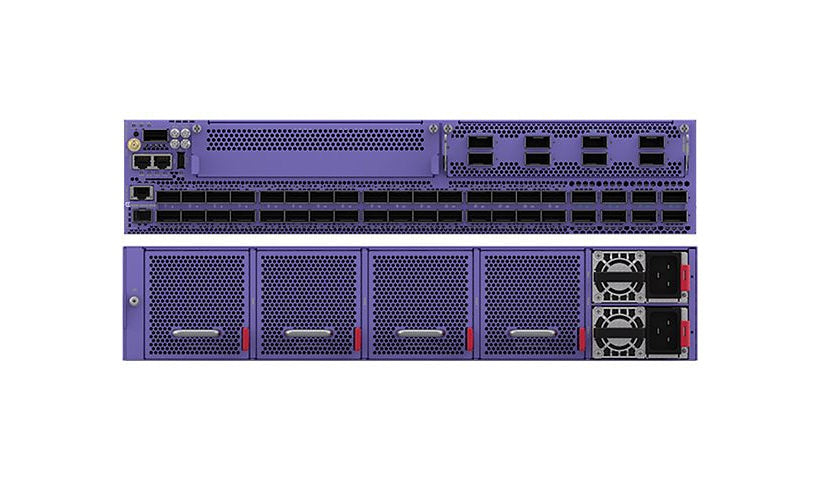

From Extreme Networks, the 7830-32CE-8DE is a Layer 3 data center and core switch with 32 100G QSFP28 ports and eight 400G QSFP-DD ports, all with MACsec. It has 16 GB of RAM and 128 GB of flash, AC power and front to back airflow.
Key Features
- 32 x 100G QSFP28 ports with MACsec
- 8 x 400G QSFP-DD ports with MACsec
- Layer 3, link aggregation, VLAN
- 16 GB RAM, 128 GB flash
- AC power
- Front to back airflow
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks
Model: 7830-32CE-8DE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Purple
Network and Communication
Advanced Switching: Layer 3
Switching Type: 400 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, SNMP
Routing Protocol: BGP, ECMP, OSPF, OSPFv3, RIP, RIPng, Static IP routing, VRF, VRRP
Performance: Switching capacity: 25.6 Tbps
Capacity: ARP table (IPv4): 40000, BGP peers: 256, Fabric adjacencies per switch: 255, Fabric nodes per area (BEB + BCB): 2000, IP interfaces: 1000, IP multicast entries: 6000, IPv4 routes: 24000, L2 virtual service networks: 4000, L3 VSN: 256, Packet buffer size: 80, RIP interfaces: 200, VRF instances: 256, VRRP interfaces: 500
MAC Address Table Size: 160000 entries
Features: Link Aggregation, Non-blocking architecture, VLAN support
Connectivity
Ports: 40
Port Quantity: 32
Port Type: 100 Gigabit QSFP28
Ports (2nd) Quantity: 8
Ports Type (2nd): 400 Gigabit QSFP-DD
Interface Provided: 1 x 1/10GBase-X SFP out-of-band network management, 1 x console RJ-45, 1 x USB Type A, 32 x 100GBase-X QSFP28 with MACsec, 8 x 400Gbase-X QSFP-DD with MACsec
Expansion Slots: 2 (total) / 2 (free) x Versatile Interface Module (VIM)
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: Intel
Clock Speed: 2.2 GHZ
RAM Installed: 16 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 128 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% RH (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 2
Airflow Direction: Front to back airflow
Status Indicators: Fan, Power, PSU, Secure, Status, System
Built-in Devices: 4 x fans
Dimensions and Weight
Height: 3.5 inch
Width: 17.3 inch
Depth: 25 inch
Weight: 37.92 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1ag, IEEE 802.1ah, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbp, IEEE 802.1Qcj, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x
Compliant Standards: 2014/30/EU, 2014/35/EU, AS/NZS CISPR32 Class A, CAN/CSA C22.2, CDRH, CISPR 24 Class A, CISPR 32 Class A, EN 300 386, EN 55011, EN 55032 Class A, EN 55035, EN 60825-1 Class 1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5 Level 3, EN 61000-6-2, EN 62368-1, FCC CFR 47 Part 15 Class A, FCC CFR21 Part 1040.10, ICES-003 Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC/EN 61000-4-11, IEC/EN 61000-4-8, UL 60950-1, UL/CUL 62368-1
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
