Product Information

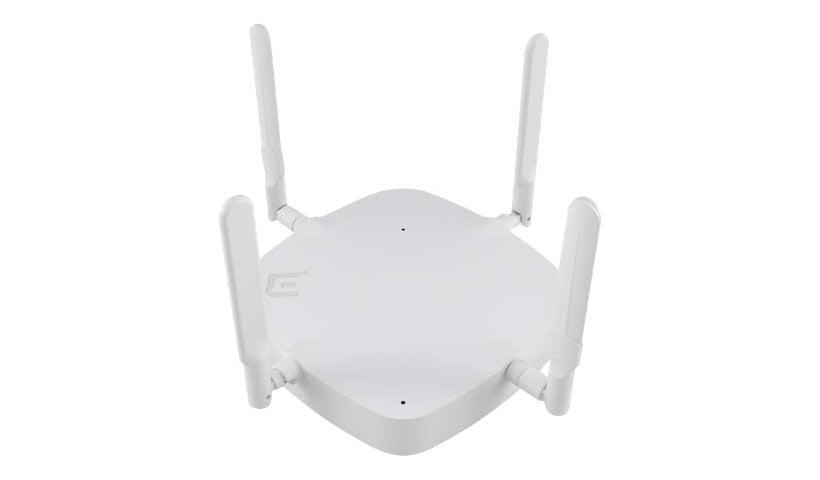

Extreme Networks' AP3000X is a Wi-Fi 6E access point for dense or harsh spaces like classrooms, warehouses and clinics, with two 2x2:2 radios up to 4.8 Gbps and Layer 7 DPI. It adds Bluetooth 5.2 LE, Zigbee and Thread, a 2.5G PoE port, a Gigabit port and USB, and works from -4 to 131 °F.
Key Features
- Wi-Fi 6E tri-band: 2.4, 5, 6 GHz
- Up to 4.8 Gbps, 2x2:2 radios
- 1/2.5G PoE + 1G RJ-45, USB
- BLE 5.2, Zigbee, Thread
- About 12.5 W, -4 to 131 °F
- Mounting bracket included
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeWireless
Model: AP3000X
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: Worldwide
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Authentication Method: Radio Service Set ID (SSID)
Encryption: WPA3
Data Transfer Rate: 4.8 GBps
Line Coding Format: 1024 QAM, 256 QAM, DSSS, OFDM
Capacity: SSIDs per radio: 16, SSIDs total: 32, Total users: 1024, Users per radio: 512
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2 LE, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM
Network Device: Maximum throughput (2.4 GHz): 287 Mbps, Maximum throughput (5 GHz): 2.4 Gbps, Maximum throughput (6 GHz): 2.4 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Thread, Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 4
Antenna Form Factor: External
Features: 2x2:2 MU-MIMO technology, Auto-negotiation, Cellular Coexistence Filter (CCF), Layer 7 Deep Packet Inspection (DPI), Multirate port, Packet aggregation A-MPDU, Packet aggregation A-MSDU, Private Pre-Shared Key (PPSK), Quality of Service (QoS), Reset button, Security slot (Kensington security lock compatible), Transmit Beamforming, Trusted Platform Module (TPM)
Connectivity
Interface Provided: 1 x 1/2.5GBase-T (PoE) - RJ-45, 1 x 10/100/1000Base-T - RJ-45, 1 x console - micro-USB, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 12.5 watt
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Status Indicators: Status
Dimensions and Weight
Height: 1.4 inch
Width: 6.8 inch
Depth: 6.8 inch
Weight: 19.75 ounce
Included Items
Included Accessories: Mounting bracket
Certifications and Listing
Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR 32, China RoHS SJ/T 11364-2014, CISPR 24, CISPR 32 Class B, CISPR 35, CSA C22.2 No. 60950-1 Second Edition, Directive 1907/2006/EU, EMC 2014/30/EU, EN 300 328, EN 300.440, EN 301 489-1, EN 301 489-17, EN 301 893, EN 302 502, EN 55011, EN 55032 Class B, EN 55035, EN 60601-1-2, EN 61000-3-2, EN 61000-3-3, EN 62311, EN 62368-1, EN 62479, EN55024, FCC CFR 47 Part 15 Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, ICES-003 Class B, IEC 60601-1-2, IEC 62368-1, IEEE 802.15.4, LVD 2014/35/EU, REACH, RED 2014/53/EU, RoHS CNS 15663, ROHS Directive 2011/65/EU, ROHS Directive 2015/863/EU, RSS-102 Issue 5, RSS-247, RSS-248, SCIP, UL 2043, UL 60950-1 Second Edition, UL/CUL 62368-1, WEEE 2012/19/EU
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, Wi-Fi CERTIFIED 6E
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
