Product Information

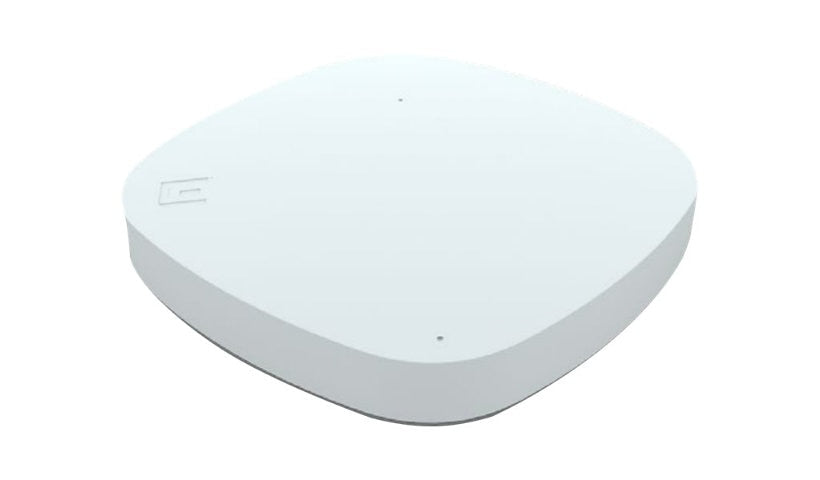

Extreme Networks' AP4000 is a universal Wi-Fi 6E access point that can run multiple Extreme operating systems with cloud management and simple licensing. It has tri-band 2x2:2 radios up to 3.9 Gbps, Bluetooth 5.2 LE, Thread and Zigbee, seven antennas, a 2.5G PoE port, a Gigabit port and USB.
Key Features
- Wi-Fi 6E tri-band: 2.4, 5, 6 GHz
- Up to 3.9 Gbps, 2x2:2
- 1/2.5G PoE + 1G RJ-45, USB
- BLE 5.2, Thread, Zigbee
- Universal hardware, cloud managed
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks Universal Wireless
Model: AP4000
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.2 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: WPA3
Data Transfer Rate: 3.9 GBps
Line Coding Format: 1024 QAM, OFDMA
Capacity: SSIDs per radio: 8, SSIDs total: 24, Total users: 1536, Users per radio: 512
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2 LE
Network Band: 2.4 GHz, 5 GHz, 6 GHz
IoT Communications Technology: Bluetooth Low Energy (LE), Thread, Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 7
Antenna Form Factor: Internal
Features: 2x2:2 streams, Cellular Coexistence Filter (CCF), Direct Sequence Spread Spectrum (DSSS), High Efficiency (HE) support, High-Throughput (HT) support, MU-MIMO technology, Orthogonal Frequency Division Multiplexing (OFDM), Security slot (Kensington security lock compatible), SU-MIMO technology, Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Very High Throughput (VHT) support
Connectivity
Interface Provided: 1 x 1/2.5GBase-T (PoE) - RJ-45, 1 x 1000Base-T - RJ-45, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): PoE
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Built-in Devices: Light sensor, Power sensor
Dimensions and Weight
Height: 1.5 inch
Width: 8.1 inch
Depth: 8.1 inch
Weight: 29.98 ounce
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.4, IEEE 802.3at, Wi-Fi CERTIFIED 6E
Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR 32, CB 62368-1, China RoHS SJ/T 11363-2006, CISPR 24 Class A, CISPR 32 Class A, CSA C22.2 No. 60950-1 Second Edition, EMC 2014/30/EU, EN 300 328, EN 300 386, EN 300.440, EN 301 489-1, EN 301 489-17, EN 301 893, EN 302 502, EN 50385, EN 55011, EN 55032 Class A, EN 55035, EN 6100-3-2, EN 6100-3-3, EN 62311, EN 62368-1, EN 62479, FCC CFR47 Part 1 1.1310, FCC CFR47 Part 15 A, FCC Part 15 Subpart B Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, ICES-003 Class A, IEC 60601-1-2, IEC 60950-1 (CB Certificate), IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC/EN 61000-4-11, LVD 2014/35/UE, REACH 2006/1907, RED 2014/53/EU, RoHS 2011/65/EU, RoHS CNS 15663, RSS-102 Issue 5, RSS-247, SCIP, UL 2043, UL 60950-1 Second Edition, UL/CUL 62368-1, WEEE 2012/19/EU
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
