Product Information

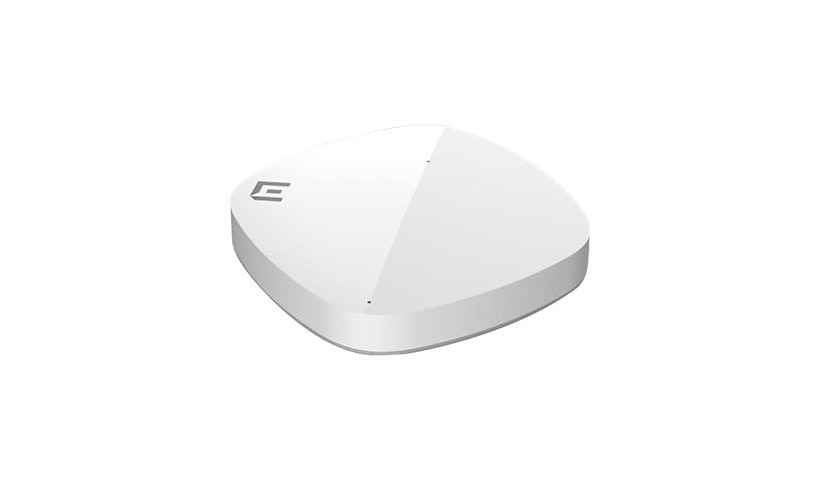

Extreme Networks' ExtremeWireless AP410C is a dual band Wi-Fi 6 access point for high density spaces, with up to 4.8 Gbps on 5 GHz plus 2.4 GHz service. It has eight antennas, Bluetooth 5.0 and Zigbee, a 2.5G PoE port, a Gigabit port and USB. A mounting kit is included.
Key Features
- Wi-Fi 6 dual band: 2.4, 5 GHz
- Up to 4.8 Gbps, 4x4 MIMO
- Bluetooth 5.0 and Zigbee
- 2.5G (PoE) and 1G RJ-45, USB
- About 23.74 W
- Mounting kit included
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeWireless
Model: AP410C
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: WPA3
Data Transfer Rate: 4.8 GBps
Line Coding Format: 1024 QAM, 256 QAM, DSSS, OFDM, OFDMA
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax, Bluetooth 5.0
Network Band: 2.4 GHz, 5 GHz
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Antennas: 8
Antenna Form Factor: Internal
Features: 2x2 MIMO technology, 4x4 MIMO technology, Bluetooth (BLE) clients support, Orthogonal Frequency Division Multiplexing (OFDM), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Security slot (Kensington security lock compatible), SU-MIMO technology, Transmit Beamforming, Tri-Band, Trusted Platform Module (TPM)
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x 2.5 GBase-T (PoE) - RJ-45, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 23.74 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
MTBF: 898,558 hour(s)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 1.5 inch
Width: 8.1 inch
Depth: 8.1 inch
Weight: 31.74 ounce
Included Items
Included Accessories: Mounting kit
Certifications and Listing
Compliant Standards: AS/NZS 4268, AS/NZS 60950-1, CISPR 32, CSA C22.2 No. 60950-1-03, EN 300 328, EN 300.440, EN 301 489-1, EN 301 489-17, EN 301 489-3, EN 301 893, EN 50385, EN 50581, EN 55011 class B, EN 55032 Class B, EN 60601-1-2, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 62311, EN 62479, EN55024, FCC CFR47 Part 15 B, FCC Subpart C 15.247, FCC Subpart E 15.407, ICES-003 Class B, IEC 60601-1-2, IEC 60950-1, RoHS 2011/65/EU, RSS-247, UL 2043, UL 60950-1
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.4, IEEE 802.3af, IEEE 802.3at, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
Warranty
Limited Warranty: Lifetime Limited
Service & Support Details: Limited warranty - lifetime
Service Activation: No
