Product Information

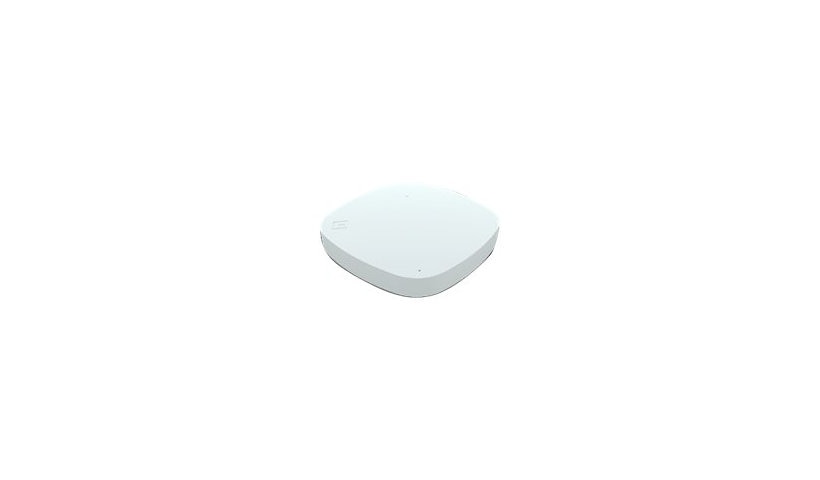

Extreme Networks' AP5010 is a universal Wi-Fi 6E access point that can run multiple Extreme operating systems and is managed from the cloud. It offers tri-band 4x4:4 MU-MIMO radios up to 10 Gbps, Bluetooth 5.2 LE, Thread and Zigbee, and two multi-gig ports. A wall and ceiling bracket is included.
Key Features
- Wi-Fi 6E tri-band: 2.4, 5, 6 GHz
- Up to 10 Gbps, 4x4:4 MU-MIMO
- 5G (PoE+) and 2.5G RJ-45 ports
- Bluetooth 5.2 LE, Thread, Zigbee
- Universal hardware, cloud managed
- Wall/ceiling bracket included
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks
Model: AP5010
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: Worldwide
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.2 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Thread, ZigBee
Authentication Method: Radio Service Set ID (SSID)
Encryption: WPA3
Data Transfer Rate: 10 GBps
Line Coding Format: 1024 QAM, 256 QAM, DSSS, OFDM, OFDMA
Capacity: SSIDs per radio: 8, SSIDs total: 24, Total users: 1536, Users per radio: 512
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2 LE, Thread, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
IoT Communications Technology: Bluetooth 5.2, Thread, Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 12
Antenna Form Factor: Internal
Features: 4x4:4 MU-MIMO technology, Cellular Coexistence Filter (CCF), Energy-Efficient Ethernet (EEE), High-Throughput (HT) support, Packet aggregation A-MPDU, Packet aggregation A-MSDU, Quality of Service (QoS), Security slot (Kensington security lock compatible), SU-MIMO technology, Transmit Beamforming, Trusted Platform Module (TPM)
Connectivity
Interface Provided: 1 x 100M/1G/2.5 Gigabit Ethernet - RJ-45, 1 x 100M/1G/2.5/5 Gigabit Ethernet (PoE+) - RJ-45, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): PoE+
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 1.5 inch
Width: 9.6 inch
Depth: 9.6 inch
Weight: 2.91 lbs
Included Items
Included Accessories: Wall and ceiling mounting bracket
Certifications and Listing
Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR32:2013, CAN/CSA C22.2 No. 60950-1 Second Edition, China RoHS, CISPR 24, CISPR 32 Class B, CISPR 35, CNS 15663, Directive 2014/30/EU, Directive 2014/35/EU, Directive 2014/53/EU, EN 300 328, EN 300.440, EN 301 489-1, EN 301 489-1-17, EN 301 893, EN 302 502, EN 303 687, EN 55011, EN 55032 Class B, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 62311, EN 62368-1, EN 62479, EN55024, FCC CFR47 Part 15 B Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, ICES-003 Class B, IEC 60601-1-2, IEC 60950-1, IEC 62368-1, REACH, RoHS 2011/65/EU, RoHS 2015/863/EU, RSS-247, RSS-248, SCIP, SJ/T 11364-2014, Taiwan BSMI RoHS, UL 2043, UL 60950-1 Second Edition, UL/CUL 62368-1, WEEE 2012/19/EU
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, Wi-Fi CERTIFIED 6E
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
