Product Information

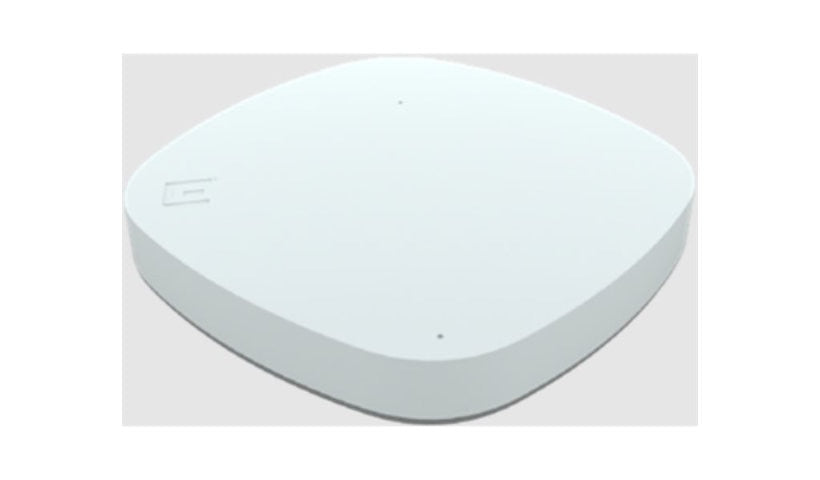

Extreme Networks' AP5020 is an indoor universal Wi-Fi 7 access point with tri-radio 4x4:4 MU-MIMO up to 20 Gbps and Multi-Link Operation. It has 10G PoE++ and 5G ports with hitless PoE failover, USB, Bluetooth 5.4 LE, Thread and Zigbee. A wall/ceiling bracket is included; the power injector is not.
Key Features
- Wi-Fi 7 tri-band: 2.4, 5, 6 GHz
- Up to 20 Gbps, 4x4:4 MU-MIMO
- 10G (PoE++) + 5G RJ-45, USB
- Hitless PoE failover
- BLE 5.4, Thread, Zigbee
- Wall/ceiling bracket included
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks
Model: AP-5020
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: Worldwide
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.4 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, Thread, ZigBee
Authentication Method: Radio Service Set ID (SSID)
Encryption: WPA3
Data Transfer Rate: 20 GBps
Line Coding Format: 1024 QAM, 256 QAM, 4096 QAM, DSSS, OFDM, OFDMA
Capacity: SSIDs per radio: 16, SSIDs total: 48, Total users: 1536, Users per radio: 512
Wireless LAN: 802.11a/b/g/n/ac/ax/be, Bluetooth, Bluetooth 5.4 LE, Thread, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM
Network Device: Channel bandwidth: 320 mhz, Maximum data rate (2.4 GHz): 1.3 Gbps, Maximum data rate (5 GHz): 5.7 Gbps, Maximum data rate (6 GHz): 11.5 Gbps
IoT Communications Technology: Bluetooth 5.4 LE, Thread, Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Features: 4x4:4 MU-MIMO technology, Auto-sensing per device, Cellular Coexistence Filter (CCF), Energy-Efficient Ethernet (EEE), Firewall protection, High-Throughput (HT) support, Hit-less PoE Failover, Multi-Link Operation (MLO), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Power Sourcing Equipment (PSE), Private Pre-Shared Key (PPSK), Quality of Service (QoS), Security slot (Kensington security lock compatible), SU-MIMO technology, Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Uplink/downlink MU-MIMO, Zero Trust Network Access (ZTNA)
Connectivity
Interface Provided: 1 x 100M/1G/2.5/5 Gigabit Ethernet - RJ-45, 1 x 100M/1G/2.5/5/10 Gigabit Ethernet (PoE++) - RJ-45, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): PoE++
Power
Device Type: External power adapter / power injector (not included)
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Wall / ceiling mountable
Dimensions and Weight
Height: 1.6 inch
Width: 10.2 inch
Depth: 10.2 inch
Weight: 3.57 lbs
Included Items
Included Accessories: Wall and ceiling mounting bracket
Certifications and Listing
Compliant Standards: 2014/35/EU, Annex II (EU) 2015/863, ANSI/UL 60950-1 Second Edition, AS/NZS 60950-1, AS/NZS CISPR 11, CAN/CSA C22.2 No. 60950-1 Second Edition 2014, China RoHS-2 SJ/T 11364-2014, CISPR 11, CISPR 32 Class B, CISPR 35, Directive 2014/30/EU, Directive 2014/53/EU, EN 300 328, EN 300.440, EN 301 489-1, EN 301 489-17, EN 301 893, EN 303 687, EN 50385, EN 55011, EN 55032 Class B, EN 55035, EN 60601-1-2, EN 61000-3-2, EN 61000-3-3, EN 62311, EN 62368-1, FCC CFR 47 Part 15 Class B, FCC Part 1.1307, FCC Subpart C 15.247, FCC Subpart E 15.407, ICES-003 Class B, IEC 60601-1-2, IEC 60950-1, IEC 62368-1, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, REACH 1907/2006/CE, RoHS 2011/65/EU, RSS-102 Issue 5, RSS-247, RSS-248, SCIP, Taiwan RoHS CNS 15663 (2013.7), UL 2043, UL/CUL 62368-1, WEEE 2012/19/EU
Compliant Standards: Bluetooth 5.4, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.4, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, Wi-Fi CERTIFIED 7
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
