Product Information

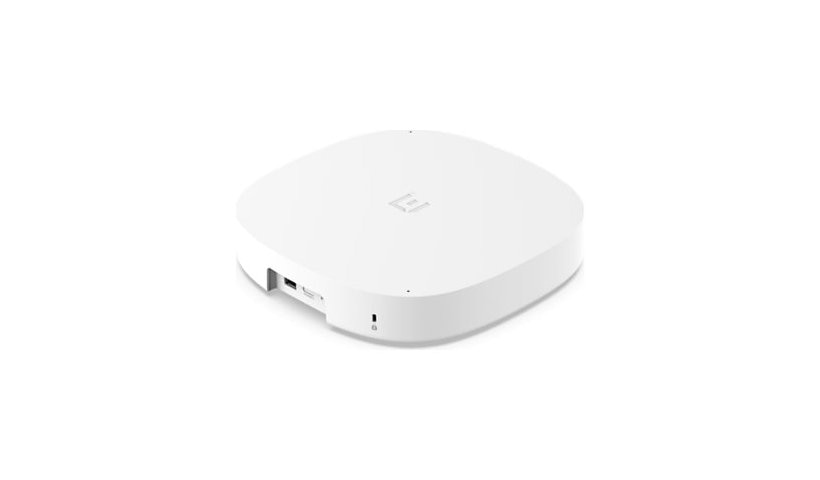

Extreme Networks' AP5022 is a cloud managed indoor Wi-Fi 7 access point with tri-band 4x4:4 MU-MIMO up to 20 Gbps, handling as many as 1,536 users across 48 SSIDs. It has two 10G multi-gig ports with hitless PoE failover, USB, Bluetooth 5.4 LE, Thread and Zigbee. It is TAA compliant.
Key Features
- Wi-Fi 7 tri-band, 4x4:4
- Up to 20 Gbps
- 2 x 100M-10G RJ-45 ports
- Hitless PoE failover, 4PPoE
- BLE 5.4, Thread, Zigbee
- TAA compliant
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks
Model: AP-5022
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.4 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, Thread, ZigBee
Authentication Method: Radio Service Set ID (SSID)
Encryption: WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Data Transfer Rate: 20 GBps
Line Coding Format: 1024 QAM, 256 QAM, 4096 QAM, DSSS, OFDM, OFDMA
Capacity: SSIDs per radio: 16, SSIDs total: 48, Total users: 1536, Users per radio: 512
Wireless LAN: 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 LE, Thread, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: 1.3 Gbps, 11.5 Gbps, 5.7 Gbps, Channel bandwidth: 320 mhz
IoT Communications Technology: Bluetooth 5.4 LE, Thread, Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Omni-directional
Features: 4x4:4 MU-MIMO technology, Auto-sensing per device, Cellular Coexistence Filter (CCF), Deep Packet Inspection (DPI), Energy-Efficient Ethernet (EEE), High-Throughput (HT) support, Hit-less PoE Failover, Integrated Ultra-Wideband (UWB), Low Power Indoor (LPI) support, Multi-Link Operation (MLO), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Quality of Service (QoS), Security slot (Kensington security lock compatible), Stateful firewall, SU-MIMO technology, Transmit Beam-forming (TxBF) ready, Tri-Band 2x2, Trusted Platform Module (TPM), Wi-Fi Agile Multiband, Wi-Fi Multimedia (WMM) support
Connectivity
Interface Provided: 1 x 100M/1G/2.5/5/10 Gigabit Ethernet - RJ-45, 1 x 100M/1G/2.5/5/10 Gigabit Ethernet - RJ-45 - 15.4 W, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): 4PPoE
Power
Device Type: External power adapter / power injector (not included)
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Wall / ceiling mountable
Status Indicators: Status
Dimensions and Weight
Height: 1.8 inch
Width: 10.2 inch
Depth: 10.2 inch
Weight: 3.59 lbs
Included Items
Included Accessories: Wall and ceiling mounting bracket
Certifications and Listing
Compliant Standards: 2011/65/EU, 2015/863, AS/NZS CISPR 32, CAN/CSA C22.2 No. 60950-1 Second Edition 2014, China RoHS, CISPR 11, CISPR 32 Class B, CISPR 35, Directive 2014/35/EU, Directive 2014/53/EU, EMC 2014/30/EU, EN 18031-1, EN 300 328, EN 300.440, EN 301 489-1, EN 301 489-17, EN 301 893, EN 303 687, EN 50385, EN 55011, EN 55032 Class B, EN 55035, EN 60601-1-2, EN 61000-3-2, EN 61000-3-3, EN 62311, EN 62368-1, EU REACH, EU RoHS, FCC CFR 47 Part 15 Class B, FCC Part 1.1307, ICES-003 Class B, IEC 60601-1-2, Regulation EC 1907/2006, RSS-102 Issue 5 2015, RSS-247 (Canada), RSS-248, SCIP, Taiwan RoHS, UL 2043, UL-60950-1 2nd Edition, UL/CUL 62368-1, WEEE 2012/19/EU
Compliant Standards: Bluetooth 5.4, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.4, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, Wi-Fi CERTIFIED 7
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
