Product Information

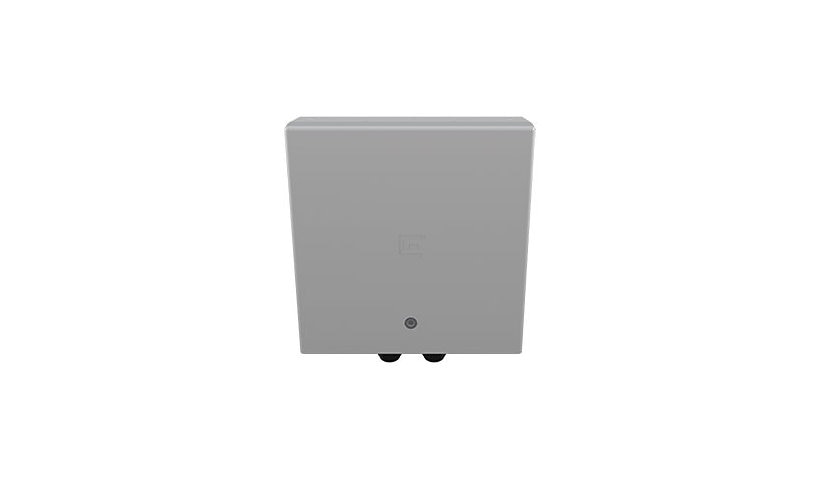

Extreme Networks' AP5050U is an outdoor Wi-Fi 6E access point with tri-band 4x4:4 MU-MIMO radios up to 10 Gbps, plus Zigbee, Thread and Bluetooth 5.2 LE. It is GPS sync compatible, cloud managed, rated -40 to 140 °F and mounts on a wall, pole or surface. It has 5G (PoE+) and 2.5G ports.
Key Features
- Wi-Fi 6E tri-band: 2.4, 5, 6 GHz
- Up to 10 Gbps, 4x4:4 MU-MIMO
- 1/2.5/5G (PoE+) and 2.5G RJ-45
- BLE 5.2, Thread, Zigbee
- Outdoor, -40 to 140 °F
- Wall, pole or surface mount
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks
Model: AP5050U
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: Gray
Country: Worldwide
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Bluetooth 5.2 LE, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Authentication Method: Radio Service Set ID (SSID)
Encryption: WPA3
Data Transfer Rate: 10 GBps
Line Coding Format: 1024 QAM, 256 QAM, DSSS, OFDM, OFDMA
Capacity: SSIDs per radio: 8, SSIDs total: 24, Total users: 1536, Users per radio: 512
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2 LE, Thread, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
IoT Communications Technology: Bluetooth 5.2, Thread, Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Omni-directional
Features: 4x4:4 MU-MIMO technology, Automatic directional antenna, Cellular Coexistence Filter (CCF), GPS sync compatible, High-Throughput (HT) support, Modular design, Multirate port, Packet aggregation A-MPDU, Packet aggregation A-MSDU, Private Pre-Shared Key (PPSK), Quality of Service (QoS), SU-MIMO technology, Support Fabric Attach, Transmit Beamforming, Tri-Band, Trusted Platform Module (TPM)
Connectivity
Interface Provided: 1 x 1/2.5/5GBase-T (PoE+) - RJ-45, 1 x 100M/1G/2.5 Gigabit Ethernet - RJ-45
Power Over Ethernet (PoE): PoE+
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: Wall / pole / surface mountable
Dimensions and Weight
Height: 11.3 inch
Width: 10 inch
Depth: 2.8 inch
Weight: 7.41 lbs
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, Wi-Fi CERTIFIED 6E
Compliant Standards: 2011/65/EU, AS/NZS 60950-1, AS/NZS CISPR 32, CAN/CSA-C22.2 No. 60950-1-07:2014, CB, China RoHS SJ/T 11364-2014, CISPR 24, CISPR 32 Class B, CISPR 35, CNS 15663, Directive 1907/2006/EC, Directive 2014/53/EU, Directive 2015/863/EU, EMC 2014/30/EU, EN 300 328, EN 300.440, EN 301 489-1, EN 301 489-17, EN 301 893, EN 302 502, EN 55011, EN 55032 Class B, EN 55035, EN 60601-1-2, EN 61000-3-2, EN 61000-3-3, EN 62311, EN 62368-1, EN 62479, EN55024, EU RoHS, FCC CFR47 Part 15 B Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, ICES-003 Class B, IEC 60601-1-2, IEC 60950-1, IEC 62368-1, IEEE 802.15.4, IP67, LVD 2014/35/EU, REACH, RSS-102 Issue 5, RSS-247, RSS-248, SCIP, UL 2043, UL-60950-1 2nd Edition, UL/CUL 62368-1, WEEE 2012/19/EU
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
