Product Information

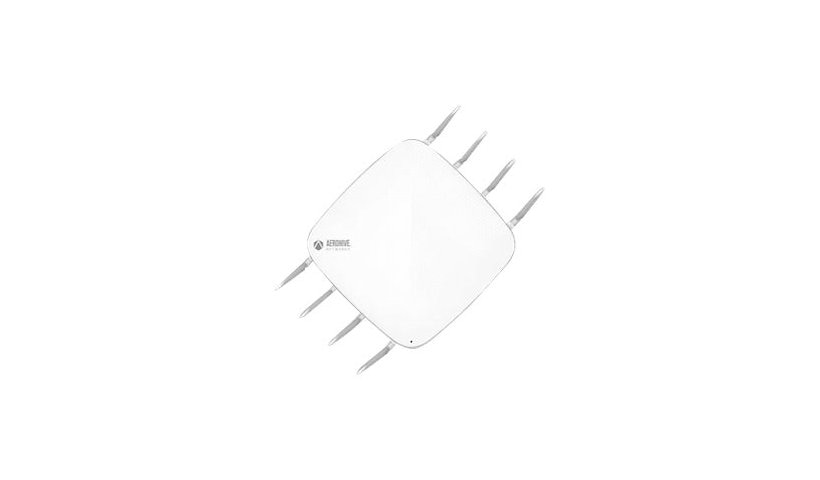

Extreme Networks' ExtremeWireless AP510C is a high capacity indoor Wi-Fi 6 model whose radios can be set as two 5 GHz radios, with 4x4 streams up to 4.8 Gbps. It has 2.5G and Gigabit PoE ports, a console port, Bluetooth 4.2 and TPM. A mounting kit is included.
Key Features
- Wi-Fi 6 dual band, 4x4
- Up to 4.8 Gbps
- Software defined dual 5 GHz radios
- 1/2.5G + 1G RJ-45 (PoE)
- Bluetooth 4.2, TPM
- Mounting kit included
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeWireless
Model: AP510C
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 4.2, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: CSMA/CA, IPSec
Encryption: AES, IKEv2, SSL, WPA, WPA2, WPA3
Data Transfer Rate: 4.8 GBps
Line Coding Format: 1024 QAM, OFDMA
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax, Bluetooth
Network Band: 2.4 GHz, 5 GHz
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Features: Direct Sequence Spread Spectrum (DSSS), Quad-stream (4x4), Security lock slot (cable lock sold separately), Trusted Platform Module (TPM)
Connectivity
Interface Provided: 1 x 1/2.5GBase-T (PoE) - RJ-45, 1 x 1000Base-T (PoE) - RJ-45, 1 x console - RJ-45
Power Over Ethernet (PoE): PoE
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 95%
MTBF: 347,530 hour(s)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Built-in Devices: Light sensor, Power sensor
Dimensions and Weight
Height: 1.5 inch
Width: 8.9 inch
Depth: 8.9 inch
Weight: 2.8 lbs
Included Items
Included Accessories: Mounting kit
Certifications and Listing
Compliant Standards: AS/NZS 60950-1, AS/NZS 62368-1, CAN/CSA C22.2 No. 60950-1-03, CAN/CSA-C22.2 No. 62368-1, EN 300 328, EN 301 893, EN 60950-1, EN 62368-1, FCC CFR47 Part 15 B, FCC Subpart C 15.247, FCC Subpart E 15.407, ICES-003 Class B, Plug and Play, RSS-247, UL 2043, UL 60950-1, UL 62368-1
Compliant Standards: IEEE 802.11ax, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11r, IEEE 802.11w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Lifetime Limited
Service & Support Details: Limited warranty - lifetime
Service Activation: No
