Product Information

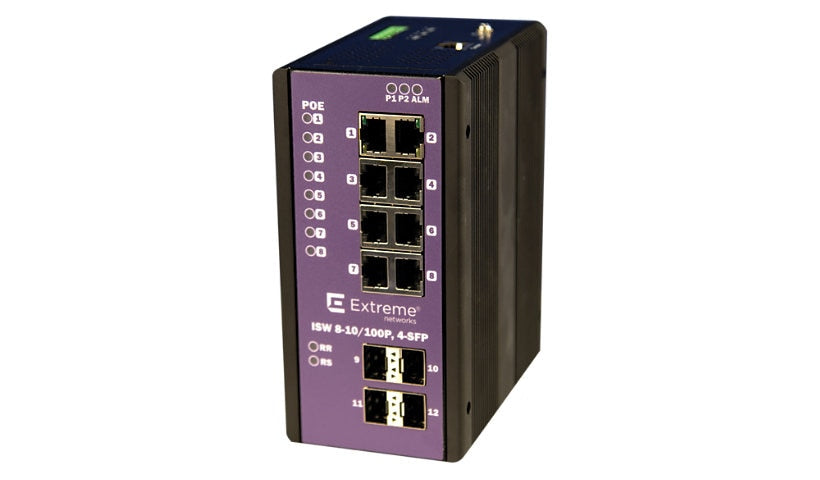

The Extreme Networks ISW 8-10/100P, 4-SFP (part 16802) is an industrial managed switch with eight 10/100 PoE+ ports and four Gigabit SFP slots. It shares a 240 W PoE budget, runs from -40 to 167 F with redundant power, and mounts on a DIN rail or wall for CCTV and wireless deployments.
Key Features
- 8 x 10/100 RJ-45 PoE+ ports
- 4 x Gigabit SFP slots
- 240 W PoE budget
- Managed: VLAN, IGMP snooping, DHCP snooping
- -40 to 167 F, redundant power
- DIN rail or wall mount
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeSwitching Industrial Ethernet Switches
Model: ISW 8-10/100P, 4-SFP
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Purple
Network and Communication
Switching Type: Fast Ethernet
Manageable: Yes
Remote Management: CLI, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Routing Protocol: IGMP, IGMPv2, IGMPv3
Authentication Method: RADIUS, TACACS+
Performance: Aggregate bandwidth: 9.6 Gbps, Forwarding performance: 7.14 Mpps
Capacity: Queues per port: 8, VLANs supported: 1024
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9KB
Features: 4MB packet buffer, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Back Pressure Support, Broadcast Storm Control, DHCP client, DHCP relay, DHCP server, DHCP snooping, Flow control, Full duplex mode, Half duplex mode, IGMP snooping, Link Aggregation Control Protocol (LACP), MAC and IP-based ACLs support, Management Information Base (MIB) II, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, SNTP support, Spanning Tree Protocol (STP) support, Store and forward, Storm Control, Syslog support, Tagged VLAN, VLAN support
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): Gigabit SFP
Interface Provided: 4 x 1000Base-X SFP, 8 x 100Base-TX RJ-45 PoE+
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Power Consumption Operational: 15 watt
PoE Budget: 240 watt
Redundant Power Supply: Yes
Memory and Processor
RAM Installed: 128 megabyte
Flash Memory Installed: 16 megabyte
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
MTBF: >25 Year
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable, Wall-mountable
Status Indicators: Port status, Power, Status
Dimensions and Weight
Height: 6.1 inch
Width: 3 inch
Depth: 5 inch
Weight: 3.11 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Compliant Standards: CB, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1-03, EMC 2004/108/EC, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-9, EN 61000-6-2, EN 61000-6-4, FCC Part 15 A, ICES-003 Class A, IEC 60950-1 Second Edition, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-9, IP30, RoHS, UL 60950-1 Second Edition, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
