Product Information

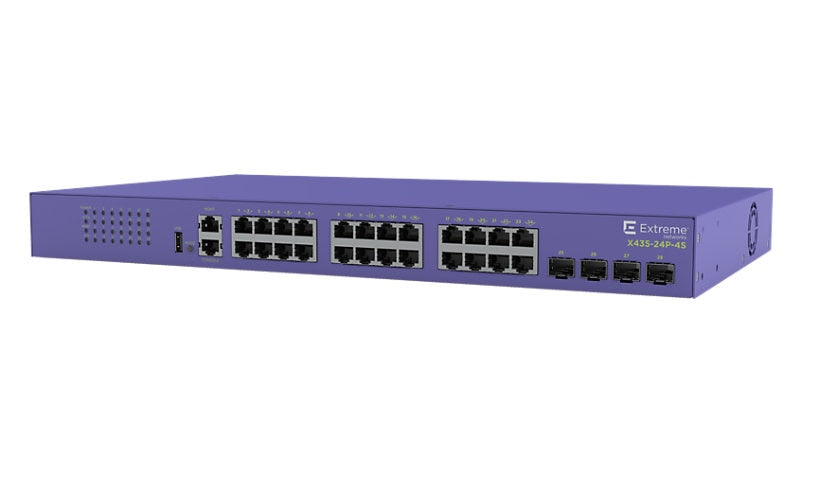

Extreme Networks' ExtremeSwitching X435-24P-4S is a standalone ExtremeXOS edge switch with 24 Gigabit PoE+ ports at up to 30 W and four 1/2.5G SFP uplinks. It has a 370 W PoE budget and 68 Gbps of switching bandwidth, with Layer 2 switching and static routing.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 4 x 1/2.5G SFP uplinks
- 370 W PoE budget
- 68 Gbps switching, 50.6 Mpps
- ExtremeXOS, Layer 2, static routing
- 1 power supply installed
Product Information
Brand: Extreme Networks
Manufacturer: EXTREME NETWORKS
Product Line: Extreme Networks ExtremeSwitching
Model: X435-24P-4S
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Purple
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Routing Protocol: Static IP routing
Performance: Aggregate switching bandwidth: 68 Gbps, Forwarding rate: 50.6 Mpps
Capacity: ACL entries (ingress): 1000, IP multicast entries: 1500, IP multicast groups: 64, IPv4 hosts: 3100, IPv6 hosts: 500, Longest prefix match (LPM) entries (IPv4): 32, Longest prefix match (LPM) entries (IPv6): 16, Policy profiles: 63, Port queues: 8, VLANs supported: 4096
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9216 bytes
Features: Energy Efficient Ethernet, Fanless, Full duplex mode, Half duplex mode, Layer 2 switching
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): SFP (mini-GBIC) (uplink)
Interface Provided: 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 1 x USB Type A, 24 x 1000Base-T RJ-45 PoE+ - 30 W, 4 x 1/2.5GBase-X SFP
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
PoE Budget: 370 watt
Power Supplies Installed: 1
Memory and Processor
Processor Brand: ARM
Processor Type: A9
Processors Installed: 1
RAM Installed: 512 megabyte
Flash Memory Installed: 128 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 10 inch
Weight: 16.91 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz
Compliant Standards: ACMA RCM, AS/NZS 60950-1, AS/NZS CISPR 32, ASTM D3580, BSMI, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1, CB, CCC, CDRH, China RoHS SJ/T 11363-2006, CISPR 11 class A, CISPR 24:2010 Class A, CISPR 32 Class A, CNS 14336-1, EAC, EMC, EMC 2014/30/EU, EN 300 386 V1.6.1, EN 55011 class A, EN 55032 Class A, EN 60825-1 Class 1, EN 60950-1, EN 6100-3-2:2014, EN 6100-3-3:2013, EN 6100-4-2, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 62368-1, EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e, EN/ETSI 300 753, EN55024, FCC CFR21 Part 1040.10, FCC CFR47 Part 15 B Class A, GB 4943.1-2011, GB 9254, ICES-003 Class A, IEC 60950-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1, KCC, LVD 2014/35/EU, NRCS, RoHS 2011/65/EU, RoHS CNS 15663, SABS, UL 60950-1, UL 62368-1, VCCI Class A, WEEE 2012/19/EU
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
