Product Information

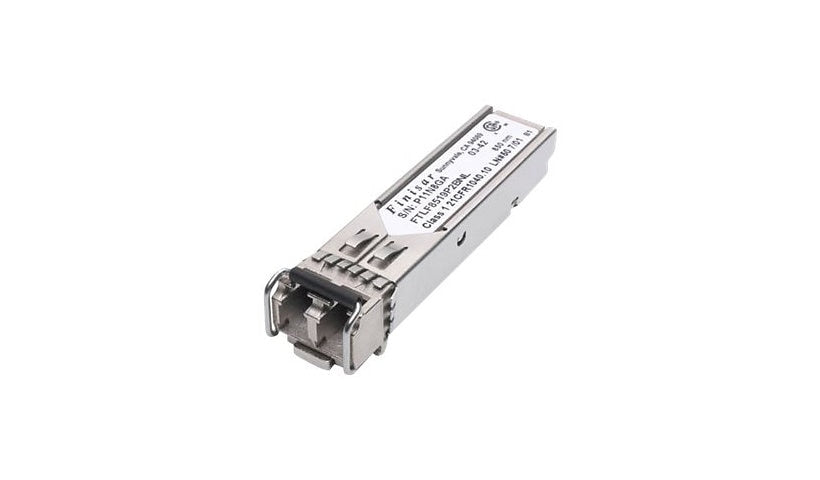

The Finisar FTLF8519P3BNL is an MSA compliant SFP module for multimode fiber that works for both Gigabit Ethernet (1000Base-SX) and 2Gb Fibre Channel short wave links. It runs at up to 2.125 Gbps on an 850 nm wavelength over duplex LC multimode fiber, reaches up to 1,640 ft (about 500 m), and offers digital diagnostics through the standard SFP serial interface. It is RoHS compliant.
Key Features
- 1000Base-SX and 2G Fibre Channel
- 850 nm short wave
- Duplex LC multimode
- Reach up to 1,640 ft
- Digital diagnostics
- Fits SFP slots
Product Information
Brand: Finisar
Manufacturer: Finisar
Product Line: Finisar
Model: FTLF8519P3BNL
Product Type: SFP (mini-GBIC) transceiver module
Packaged Quantity: 1
Network and Communication
Fibre Channel: FC-PI-5
Connectivity Technology: Wired
Data Link Protocols: 2Gb Fibre Channel (Short Wave), Fibre Channel, Gigabit Ethernet
Cable Type: Ethernet 1000Base-SX
Data Transfer Rate: 2.125 GBps
Max Transfer Distance: 1640 ft
Optical Wave Length: 850 nm
Features: Digital Diagnostics
Connectivity
Interface Provided: 1 x Ethernet 1000Base-SX - LC multi-mode x 2
Compatible Slots Required: 1 x SFP (mini-GBIC)
Left Connector SD Type: LC multi-mode
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 185 degree Fahrenheit
Physical Characteristics
Form Factor: Plug-In Module
Dimensions and Weight
Height: 0.5 inch
Width: 0.6 inch
Depth: 2.2 inch
Certifications and Listing
Compliant Standards #2: IEEE 802.3
Compliant Standards: Lead-Free, MSA, RoHS 6/6
Compliant Standards: IEEE 802.3
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
