Product Information

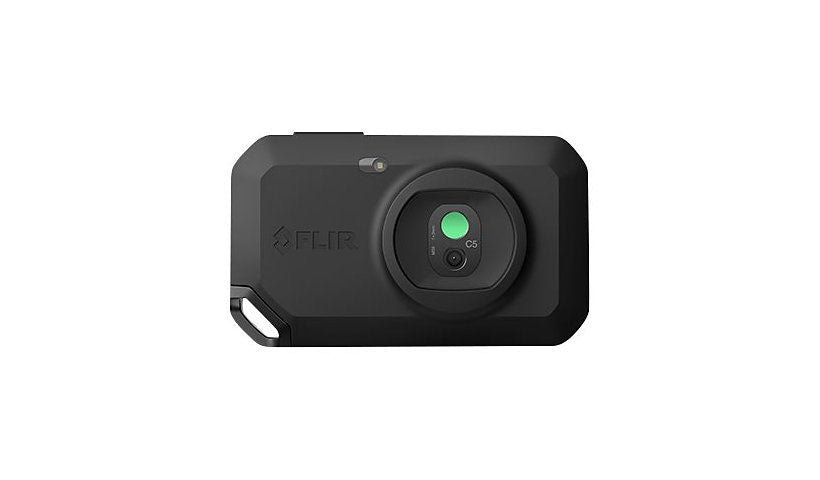

The FLIR C5 is a pocket thermal camera for building inspections, HVAC/R, electrical and facilities work, with a 160 x 120 thermal sensor, 70 mK sensitivity and MSX image enhancement, plus a 5 MP visual camera. It has a 3.5 inch display, Wi-Fi upload to FLIR Ignite cloud, USB-C, a Li-ion battery for up to 4 hours, IP54 and a 6.6 ft drop rating. Backed by a 2 year limited warranty.
Key Features
- 160 x 120 thermal
- MSX enhancement
- 3.5 inch display
- Wi-Fi cloud upload
- Up to 4 h battery
- 2 year limited warranty
Product Information
Brand: FLIR
Details: Li-ion rechargeable battery (included)
Manufacturer: Flir
Product Line: FLIR
Model: C5
Product Type: Thermal and visual light camera combo
Packaged Quantity: 1
Color Category: Black
Network and Communication
Wireless Interface: IEEE 802.11a/b/g/n/ac
Features: Adjustable thermal span, Auto power save, Camera orientation detection, Image refresh rate 8.7Hz, MSX image enhancement technology, Picture-in-picture capability, Thermal sensitivity 70mK, USB Charging
Connectivity
Connection Point: 1/4" socket
Connectivity Features: Live streaming, Remote live view, Wireless image upload to cloud server
Composite Video Out: USB 2.0
Type: LCD display
Connector Type: USB 2.0 (USB Type-C)
Power
Battery Form Factor: Manufacturer-specific
Battery Chemistry: Lithium ion
Battery Run Time (Up To): 4 hour(s)
Technical Information
Effective Sensor Resolution: 19,200 pixels
Recording Formats: JPEG
Min Focus Distance: 3.9 inch
Image Sensor Type: Uncooled Micro bolometer
Sensor Resolution: 0.0192 megapixel
Touchscreen: Yes
Digital Camera Type: Compact
Autofocus: Focus free
Lens Type: Lens
Image Storage: 160 x 120 - thermal imaging
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Display Form Factor: Built-in
Screen Size: 3.5 inch
Screen Size (metric): 8.9 centimetre
Max Height of Shock Resistance: 6.6 ft
Protection: IP54, Shockproof
Dimensions and Weight
Weight Details: Camera with battery: 6.7 oz
Height: 3.3 inch
Width: 5.4 inch
Depth: 0.9 inch
Weight: 6.7 ounce
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - IR sensor - 10 years, Limited warranty - parts and labor - 2 years
