Product Information

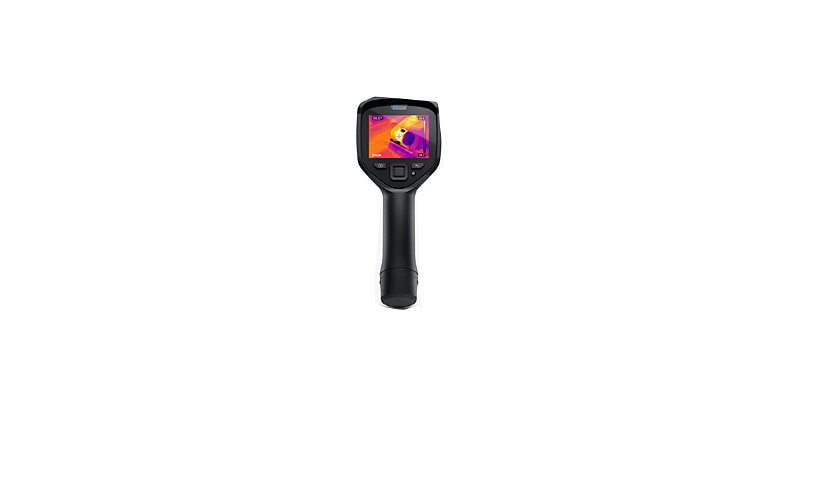

The FLIR E5 Pro is a handheld thermal imager with a 160 x 120 sensor, MSX image enhancement and a 3.5 inch touchscreen, for electrical, mechanical and building checks. It has Wi-Fi, a 33 degree view, up to 4 hours of battery, IP54 and a 6.6 ft drop rating, and ships in a hard case. Quick specs reference NFPA 70B. It is an inspection tool, not a security camera.
Key Features
- 160 x 120 thermal
- MSX enhancement
- 3.5 inch touchscreen
- Wi-Fi, 33 degrees
- Up to 4 h battery
- IP54, hard case
Product Information
Brand: FLIR
Details: Li-ion rechargeable battery (included)
Manufacturer: Flir
Product Line: FLIR
Model: E5 Pro
Product Type: Thermal and visual light camera combo
Packaged Quantity: 1
Color Category: Black
Network and Communication
Wireless Interface: IEEE 802.11a/b/g/n
Features: Auto power save, Cloud backup, MSX image enhancement technology, Picture-in-picture capability, USB Charging
Connectivity
Composite Video Out: USB
Type: LCD display
Connector Type: USB (micro-USB)
Power
Battery Form Factor: Manufacturer-specific
Battery Chemistry: Lithium ion
Battery Run Time (Up To): 4 Hours
Technical Information
Effective Sensor Resolution: 19,200 pixels
Max View Angle: 33 degrees
Min Focus Distance: 14.2 inch
Image Sensor Type: Uncooled Micro bolometer
Sensor Resolution: 0.0192 megapixel
Resolution: 640 x 480 pixels
Touchscreen: No
Digital Camera Type: Compact
Autofocus: Focus free
Lens Type: Lens
Image Storage: 160 x 120 - thermal imaging
Min Operating Temperature: 5 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% RH
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 0 - 95% RH
Physical Characteristics
Display Form Factor: Built-in
Screen Size: 3.5 inch
Screen Size (metric): 8.9 centimetre
Max Height of Shock Resistance: 6.6 ft
Protection: IP54, Shockproof
Dimensions and Weight
Weight Details: Camera with battery: 20.8 oz
Height: 9.6 inch
Width: 3.7 inch
Depth: 5.5 inch
Weight: 20.81 ounce
Included Items
Accessories Included: AC power adapter (EU/UK/US/AU plugs), Hard Case
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
