Product Information

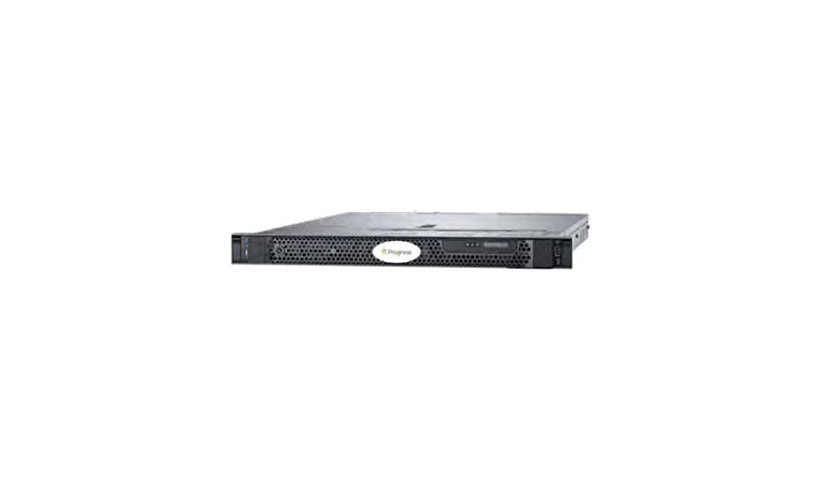

The Flowmon Probe 20000 SFP+ is a 1U rack mount appliance that watches network traffic and builds IP flow statistics, then exports them as NetFlow or IPFIX data to a Flowmon Collector or another compatible tool for troubleshooting, performance and security monitoring. It has a 12-core CPU, 64 GB RAM, a SATA hard drive and a built-in flow collector. Monitoring runs on 2 x 10/25 GbE SFP+ ports at 1.5 Mpps per port with a 4 MB flow cache, and 2 x gigabit RJ-45 ports handle management. It understands GRE, MPLS, VXLAN, OTV, SPB, TRILL, ESP and VLAN traffic and ships with one 600 W power supply.
Key Features
- NetFlow and IPFIX probe
- 2 x 10/25 GbE SFP+ ports
- 1.5 Mpps per port
- 12-core CPU, 64 GB RAM
- Built-in flow collector
- 1U, one 600 W PSU
Product Information
Brand: Flowmon
Manufacturer: Kemp Technologies
Product Line: Flowmon Probe
Model: 20000 SFP+
Product Type: Network monitoring device
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet
Routing Protocol: GRE, MPLS, VXLAN
Capacity: Flow cache: 4 MB
Network Device: Performance per port: 1.5 Mpps
Features: 12-core CPU, Built-in flow collector, Encapsulating Security Payload (ESP), Flowmon Monitoring Center (FMC), Overlay Transport Virtualization (OTV), Shortest Path Bridging (SPB), Transparent Interconnection of Lots of Links (TRILL), VLAN support
Connectivity
Ports: 2
Interface Provided: 2 x 1000Base-T (management) - RJ-45, 2 x 10Gb Ethernet/25Gb Ethernet - SFP+
Power
Device Type: Internal power supply
Power Provided: 600 watt
Power Supplies Installed: 1
Memory and Processor
RAM Installed: 64 GB
Port Expansion Hard Drive Type: HDD
Drive Interface: Serial ATA-600
Technical Information
Min Operating Temperature: 50 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 10 - 80%
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.1 inch
Depth: 22.2 inch
Weight: 29.1 lbs
Warranty
Service Activation: No
