Product Information

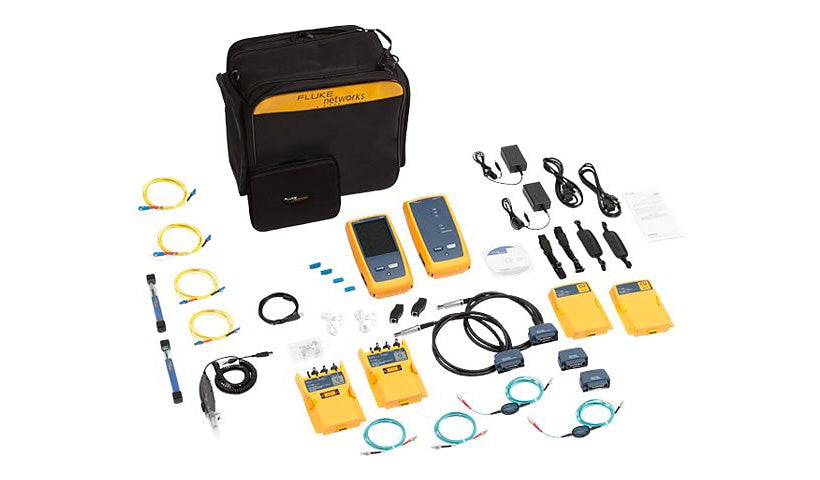

The Fluke DSX2-5000QI/GLD kit combines copper certification and fiber loss testing. It includes a Versiv mainframe and remote, two DSX-5000 CableAnalyzer modules and two CertiFiber Quad OLTS modules, with 1 year of Gold Support. The DSX modules certify Cat 3 to Cat 6A to ISO/IEC 11801 and TIA-568-C.2 at TIA Level 2G and IEC Level VI, with Cat 6A tests in about eight seconds. Fiber extras include a USB inspection probe with 4 tips, singlemode and 50 µm encircled flux multimode test reference cord kits, LC adapters and Quick Clean cleaners, along with copper adapters, headsets, AC adapters and cases. It has a 1 year warranty and 1 year calibration period.
Key Features
- DSX-5000 copper modules
- CertiFiber Quad OLTS
- Cat 6A test in 8 seconds
- Fiber inspection probe
- 1 year Gold Support
- 1 year warranty
Product Information
Tests, Tools and Measurements: Attenuation-to-crosstalk ratio far end, DC loop resistance, Delay skew between pair, Insertion loss (attenuation), Length, Near-end crosstalk, Power sum, Propagation delay, Return loss, Wiremap
Media: Copper
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke DSX CableAnalyzer
Model: DSX2-5000QI
Product Type: Network tester kit
Packaged Quantity: 1
Network and Communication
Features #2: Touchscreen
Features: 1-year calibration period, 2-way autotest, Headset connection, USB connectivity, Wi-Fi IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)
Features: Touchscreen
Bundled Services: 1 Year Gold Support
Connectivity
Connectors: RJ-45
Power
Battery Chemistry: Lithium ion
Battery Voltage: 7.2 volt
Battery Run Time (Up To): 8 hour(s)
Technical Information
Cable Types: CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6a
Software: AxTalk, LinkWare PC
Test Standards: ISO/IEC 11801, TIA-568-C.2
Color Support: Color
Display Diagonal Size: 5.7 inch
Display Diagonal Size (metric): 14.5 centimetre
Display Screen: LCD
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 0 - 90%
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Physical Characteristics
Drop Specification: 3.3 ft
Max Altitude Operating: 13120 ft
Included Items
Kit Content: 2 x CertiFiber Quad OLTS Module, 2 x DSX-5000 CableAnalyzer Module, Versiv Mainframe, Versiv Remote
Included Accessories: 2 x AC power adapters, 2 x CAT 6A channel adapters, 2 x CAT 6A permanent link adapters, 2 x hand straps, 2 x headsets, 2 x interchangeable LC adapters, 2 x Quick Clean Cleaners (1.25/2.50 mm), 2 x shoulder straps, 2 x universal couplers, Carrying case, SC/LC EF-Compliant MM TRC Kit 50 µm, SC/LC SM TRC Kit, TRC Carry Case, USB fiber inspection video probe with 4 tips
Cables: 1 x USB cable, 2 x RJ-45 coupler
Certifications and Listing
Compliant Standards: EN 61010-1 1st Edition Amendments 1, 2, EN 61326-1
Warranty
Manufacturer Limited Warranty: 1 year
