Product Information

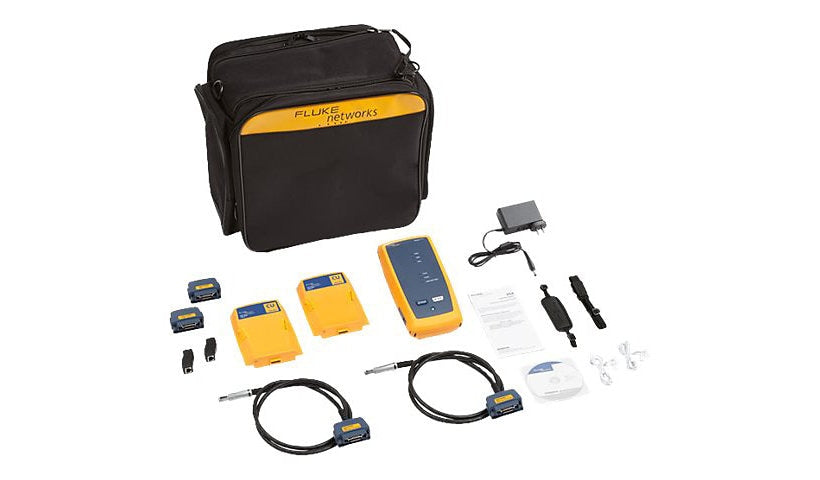

The Fluke DSX2-8000-ADD-R adds two DSX-8000 CableAnalyzer modules and a Versiv remote to an existing system, without a mainframe. It certifies Cat 3 to Cat 8 to ISO/IEC 11801, ISO/IEC 61935-1 Level IV, TIA-1152 and TIA-568-C.2 with full 2-way autotest, and has overvoltage and overcurrent protection and a shock absorbing design. Cat 8/Class I channel and permanent link adapters, AxTalk terminators, headsets, AC adapters, couplers, straps and a case are included, with a 1 year warranty and calibration period.
Key Features
- 2 x DSX-8000 modules
- Versiv remote included
- No mainframe included
- Cat 3 to Cat 8
- Level IV, TIA-1152
- 1 year warranty
Product Information
Tests, Tools and Measurements: Attenuation-to-crosstalk ratio far end, DC loop resistance, Delay skew between pair, Full 2-way autotest, Insertion loss (attenuation), Length, Power sum, Propagation delay, Return loss, Wiremap
Media: Copper
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke DSX CableAnalyzer
Model: DSX2-8000-ADD-R
Product Type: Network tester kit
Packaged Quantity: 1
Network and Communication
Features: 1-year calibration period, Automatic overcurrent protection, Automatic overvoltage protection, Shock-absorbing
Connectivity
Connectors: RJ-45
Power
Battery Chemistry: Lithium ion
Battery Voltage: 7.2 volt
Battery Run Time (Up To): 8 hour(s)
Technical Information
Cable Types: CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6a, CAT8
Software: Versiv Open Source Software
Test Standards: ISO/IEC 11801, ISO/IEC 61935-1 Level-IV, TIA-1152, TIA-568-C.2
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 0 - 90%
Min Storage Temperature: -22 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Physical Characteristics
Max Altitude Operating: 13120 ft
Included Items
Kit Content: 2 x DSX-8000 CableAnalyzer Module, Versiv Remote
Included Accessories: 2 x AC power adapters, 2 x AxTalk terminators, 2 x CAT 8/Class I channel adapters, 2 x CAT 8/Class I permanent link adapters, 2 x hand straps, 2 x headsets, 2 x shoulder straps, 2 x universal couplers, Carrying case
Cables: 2 x RJ-45 coupler
Certifications and Listing
Compliant Standards: CSA, EN 61326-1
Warranty
Manufacturer Limited Warranty: 1 year
