Product Information

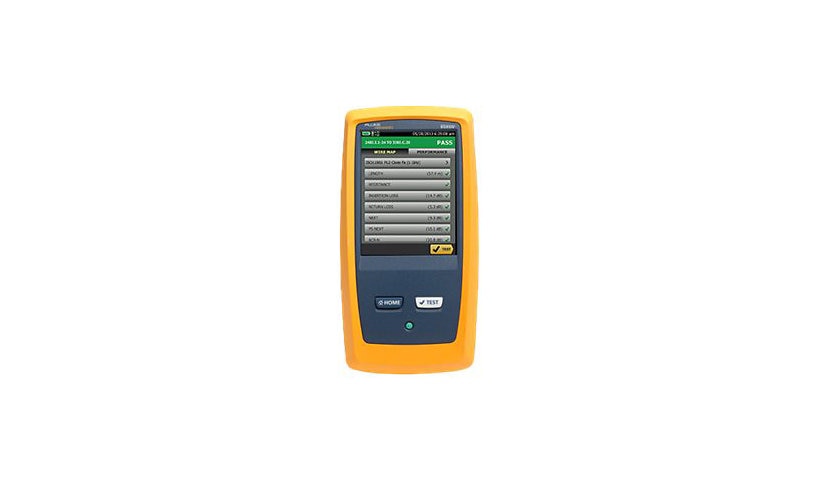

The Fluke DSX2-8000QOI kit lists two DSX-8000 CableAnalyzer modules, a Versiv mainframe and a Versiv remote for Cat 3 to Cat 8 certification to TIA-568-C.2, with Cat 6A tests in about eight seconds and Wi-Fi access to results. The accessories also include multimode 50 µm and singlemode 9 µm SC/LC launch cables, LC and SC adapters and Quick Clean cleaners, so please confirm which fiber modules ship. It includes Cat 8/Class I adapter sets, AxTalk terminators, headsets, AC adapters, straps and a case, with a 1 year warranty and 1 year calibration period.
Key Features
- 2 x DSX-8000 modules
- Cat 3 to Cat 8
- Versiv main and remote
- Fiber launch cables incl.
- Fiber modules to confirm
- 1 year warranty
Product Information
Tests, Tools and Measurements: Attenuation-to-crosstalk ratio far end, DC loop resistance, Delay skew between pair, Insertion loss (attenuation), Length, Power sum, Propagation delay, Return loss, Wiremap
Media: Copper
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke DSX CableAnalyzer
Model: DSX2-8000QOI
Product Type: Network tester kit
Packaged Quantity: 1
Network and Communication
Features #2: Touchscreen
Features: 1-year calibration period, 2-way autotest, Headset connection, USB connectivity, Wi-Fi for access to test results
Features: Touchscreen
Connectivity
Connectors: RJ-45
Power
Battery Chemistry: Lithium ion
Battery Voltage: 7.2 volt
Battery Run Time (Up To): 8 hour(s)
Technical Information
Cable Types: CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6a, CAT8
Software: Versiv Open Source Software
Test Standards: TIA-568-C.2
Color Support: Color
Display Diagonal Size: 5.7 inch
Display Diagonal Size (metric): 14.5 centimetre
Display Screen: LCD
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 0 - 90%
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Physical Characteristics
Drop Specification: 3.3 ft
Max Altitude Operating: 13120 ft
Included Items
Kit Content: 2 x DSX-8000 CableAnalyzer Module, Versiv Mainframe, Versiv Remote
Included Accessories: 2 x AC power adapters, 2 x AxTalk terminators, 2 x hand straps, 2 x headsets, 2 x interchangeable LC adapters, 2 x Quick Clean Cleaners (1.25/2.50 mm), 2 x SC/LC multimode launch cables-50 µm, 2 x SC/LC singlemode launch cables-9 µm, 2 x shoulder straps, 2 x universal couplers, Carrying case, CAT 8/Class I channel adapters set, CAT 8/Class I permanent link adapters set, Interchangeable SC adapter, SC/LC EF-Compliant MM TRC Kit 50 µm, SC/LC SM TRC Kit, TRC Carry Case, USB fiber inspection video probe with 4 tips
Cables: 1 x USB cable, 2 x RJ-45 coupler
Certifications and Listing
Compliant Standards: EN 61326-1
Warranty
Manufacturer Limited Warranty: 1 year
