Product Information

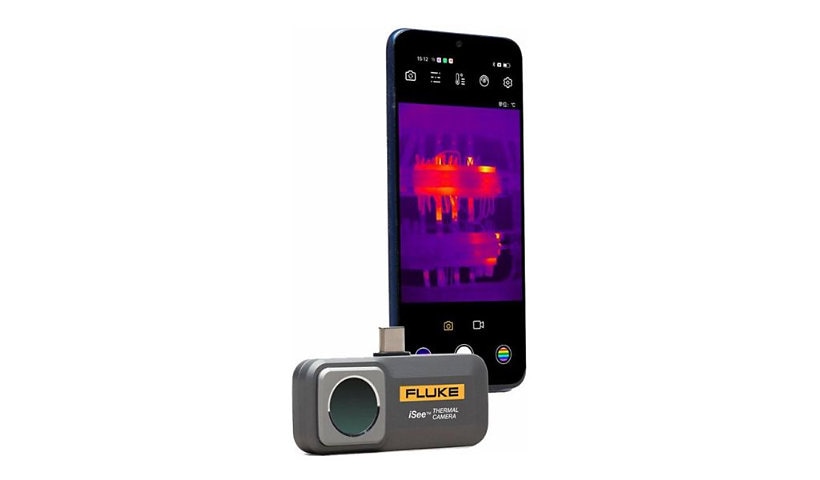

The Fluke iSee TC01A plugs into an Android phone's USB-C port to add thermal imaging, a thermal imager rather than a network tester. Its fixed focus thermal lens gives 256 x 192 images and measures -10 to 550 °C at 25 Hz with 50 mK sensitivity. The aluminum body is IP54 rated, survives a 3.3 ft drop and works from 0 to 40 °C.
Key Features
- Thermal camera, Android
- USB-C connection
- 256 x 192 resolution
- -10 to 550 °C range
- 25 Hz, 50 mK
- IP54 aluminum body
Product Information
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke iSee
Model: TC01A
Product Type: Thermal camera module
Packaged Quantity: 1
Color Category: Gray
Connectivity
Composite Video Out: USB
Connector Type: USB (24 pin Micro-USB-C)
Technical Information
Digital Camera Type: Smartphone attachable
Autofocus: Fixed focus
Lens Type: Thermal lens
Supported Host Device Platform: Android
Image Storage: 256 x 192 - thermal imaging
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Min Storage Temperature: -22 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Physical Characteristics
Max Height of Shock Resistance: 3.3 ft
Body Material: High quality aluminum
Protection: IEC 60529, IP54
Dimensions and Weight
Height: 0.4 inch
Width: 1.3 inch
Depth: 2.4 inch
Weight: 0.78 ounce
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
