Product Information

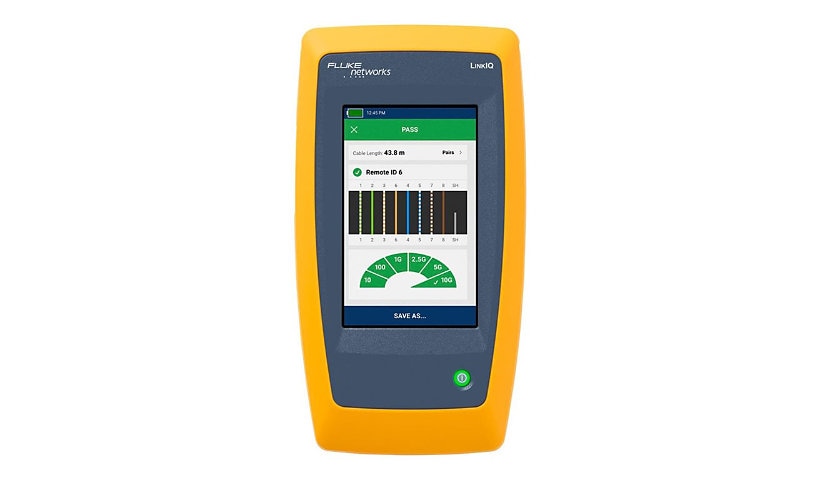

The Fluke LinkIQ LIQ-DUO-IE is the LIQ-200 DUO tester in an industrial Ethernet kit. It checks copper cable for wiremap, length and type and the network for PoE, ping, nearest switch, VLAN, CDP, LLDP, DHCP and 802.1x, and also tests dual band Wi-Fi 6 signal strength and utilization. The kit includes a multi-connector adapter with magnetic strap, remote ID #1, RJ-45 to M12D, M12X and M8D cords, an RJ-45 patch cord, an RJ-45 to RJ-11 adapter, a USB-C cable, charger, hanging strap and case. It has an 800 x 480 touchscreen and up to 8 hours of battery.
Key Features
- LinkIQ DUO IE kit
- Copper and Wi-Fi 6 tests
- M12D, M12X, M8D cords
- PoE, switch, VLAN info
- Multi-connector adapter
- Up to 8 hour battery
Product Information
Tests, Tools and Measurements: Cable type, Ethernet link diagnostic, Frequency, Identifies remote ID locators, Length, Ping, PoE, Received signal strength, Utilization statistics, Wiremap
Media: Copper, Radio
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke LinkIQ
Model: LIQ-200 DUO
Product Type: Network tester kit
Packaged Quantity: 1
Network and Communication
Features #2: Touchscreen
Features: 802.1x authentication, Analog and Digital Toning, Cable tone generator, Cisco Discovery Protocol (CDP), Dynamic Host Configuration Protocol (DHCP), Fast Link Pulses (FLP), Firmware upgradable, Internet Control Messaging Protocol (ICMP), Link Layer Discovery Protocol (LLDP), Port Blink, Remote Office Locators, Switch and VLAN detail, Wi-Fi IEEE 802.11 a/b/g/n/ac/ax; dual band (2.4 GHz and 5 GHz)
Features: Touchscreen
Connectivity
Connectors: 24 pin USB type C, RJ-45
Power
Battery Chemistry: Lithium ion
Battery Voltage: 3.6 volt
Output Voltage: 15 V
Battery Run Time (Up To): 8 hour(s)
Input Voltage: 100-240 V
Technical Information
Cable Types: STP, UTP
Color Support: Color
Display Resolution: 800 x 480 pixels
Display Screen: LCD
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 0 - 90%
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Physical Characteristics
Drop Specification: 3.3 ft
Max Altitude Operating: 13120 ft
Vibration Acceleration (Operating): 2 gram
Vibration Frequency Range (Operating): 5-500 Hz
Dimensions and Weight
Height: 8.5 inch
Width: 4.5 inch
Depth: 1.9 inch
Weight: 22.01 ounce
Included Items
Kit Content: Network tester with multi-connector adapter with magnetic strap, RJ45 Remote-ID #1
Included Accessories: Carrying case, Charging cable, Hanging strap with remote ID holder
Cables: RJ-45 to M12D patch cable, RJ-45 to M12X patch cable, RJ-45 to M8D patch cable, RJ-45 to RJ-11 modular adapter, RJ-45 to RJ-45 patch cable, USB to USB-C cable
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
