Product Information

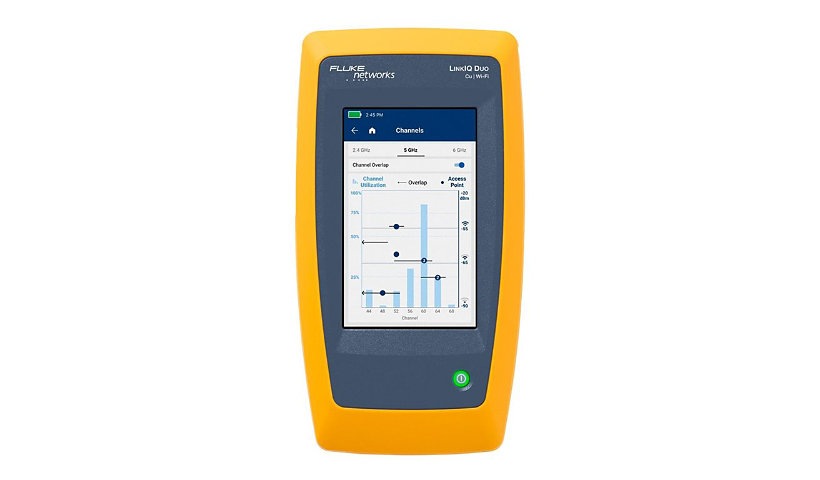

The Fluke LinkIQ LIQ-DUO-VFL-LFD kit covers copper and basic fiber checks. It includes the LinkIQ Cable+Network Tester, an IntelliTone Pro 200 Probe, 7 ID remotes, a visual fault locator and a FiberLert live fiber detector, with an 850 to 1625 nm light source listed in the contents. LinkIQ tests bandwidth, wiremap, length, pair length, split pairs and PoE, reads switch and VLAN data through CDP and LLDP and offers toning and port blink. It has an 800 x 480 touchscreen and up to 8 hours of battery, and comes with an RJ-45 patch cord, RJ-45 to RJ-11 adapter, 2 AAA batteries, charger and case.
Key Features
- LinkIQ cable tester
- Visual fault locator
- FiberLert detector
- IntelliTone Pro 200 Probe
- 7 ID remotes
- Up to 8 hour battery
Product Information
Tests, Tools and Measurements: Bandwidth, Length, Pair length, PoE, Tests for split pairs, Toning, Wiremap
Media: Copper
Brand: Fluke
Manufacturer: Fluke Networks
Product Line: Fluke LinkIQ
Product Type: Network tester kit
Packaged Quantity: 1
Network and Communication
Features #2: Touchscreen
Features: Analog and Digital Toning, Cable tone generator, Cisco Discovery Protocol (CDP), Link Layer Discovery Protocol (LLDP), Port Blink, USB-C connectivity, VLAN support
Features: Touchscreen
Connectivity
Connectors: RJ-45
Power
Battery Chemistry: Lithium ion
Battery Voltage: 3.6 volt
Output Voltage: 15 V
Battery Run Time (Up To): 8 hour(s)
Input Voltage: 100-240 V
Technical Information
Cable Types: STP, UTP
Color Support: Color
Display Resolution: 800 x 480 pixels
Display Screen: LCD
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Physical Characteristics
Drop Specification: 3.3 ft
Vibration Acceleration (Operating): 2 gram
Vibration Frequency Range (Operating): 5-500 Hz
Dimensions and Weight
Height: 8.7 inch
Width: 4.3 inch
Included Items
Kit Content: 7 x ID remotes, 850 - 1625 nm light source, FiberLert live fiber detector, IntelliTone Pro 200 Probe, LinkIQ Cable+Network Tester, Visual fault locator
Included Accessories: 2 AAA batteries, Carrying case, Power charger
Cables: RJ-45 to RJ-11 modular adapter, RJ-45 to RJ-45 patch cable
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
